Scheme DesignUHD Video Matrix 8x8

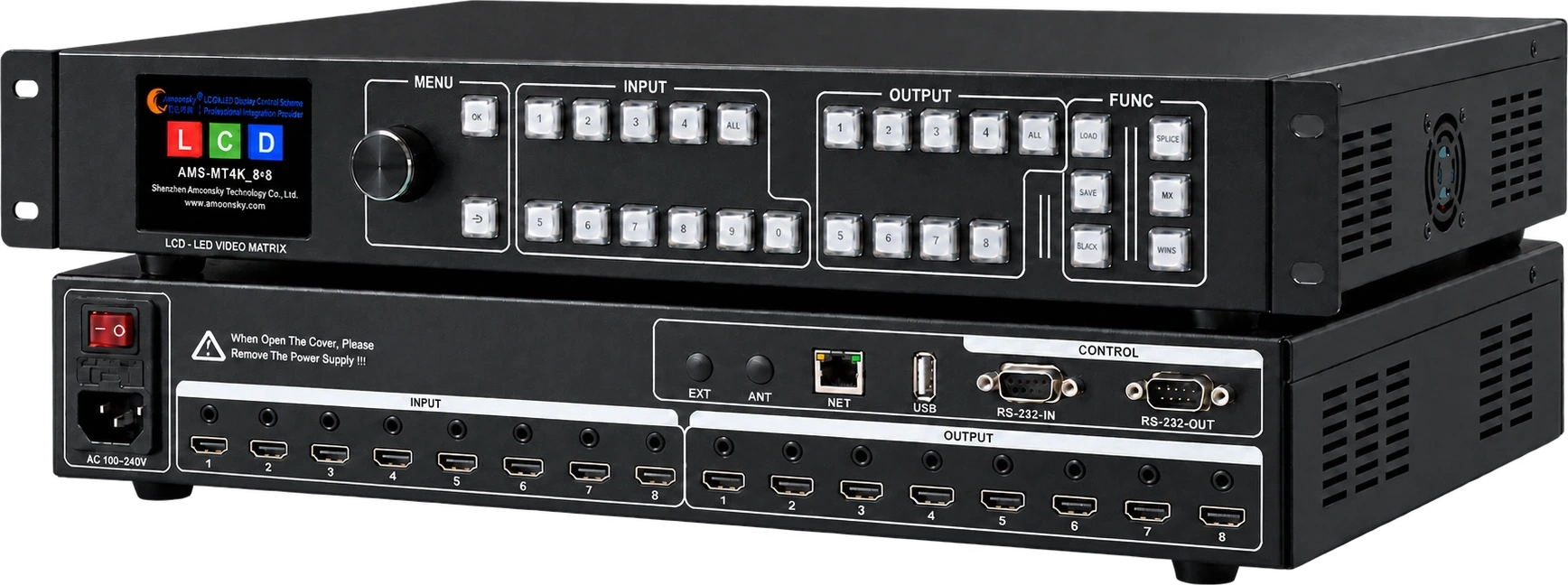

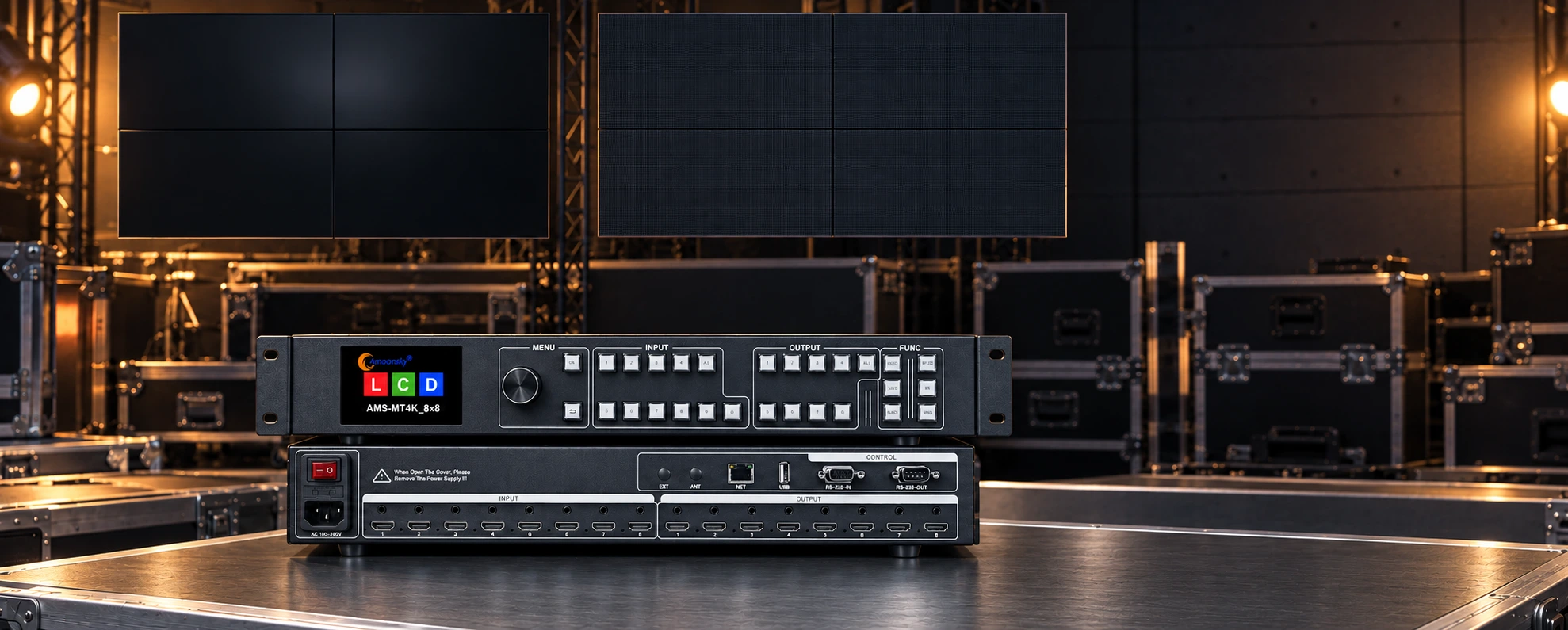

UHD Video Matrix 8x8
AMS-MT4K_8x8
UHD Video Matrix
4K@60Hz·8 Input·8 Output
One source spread across each 2×2 screen group.
High-Performance

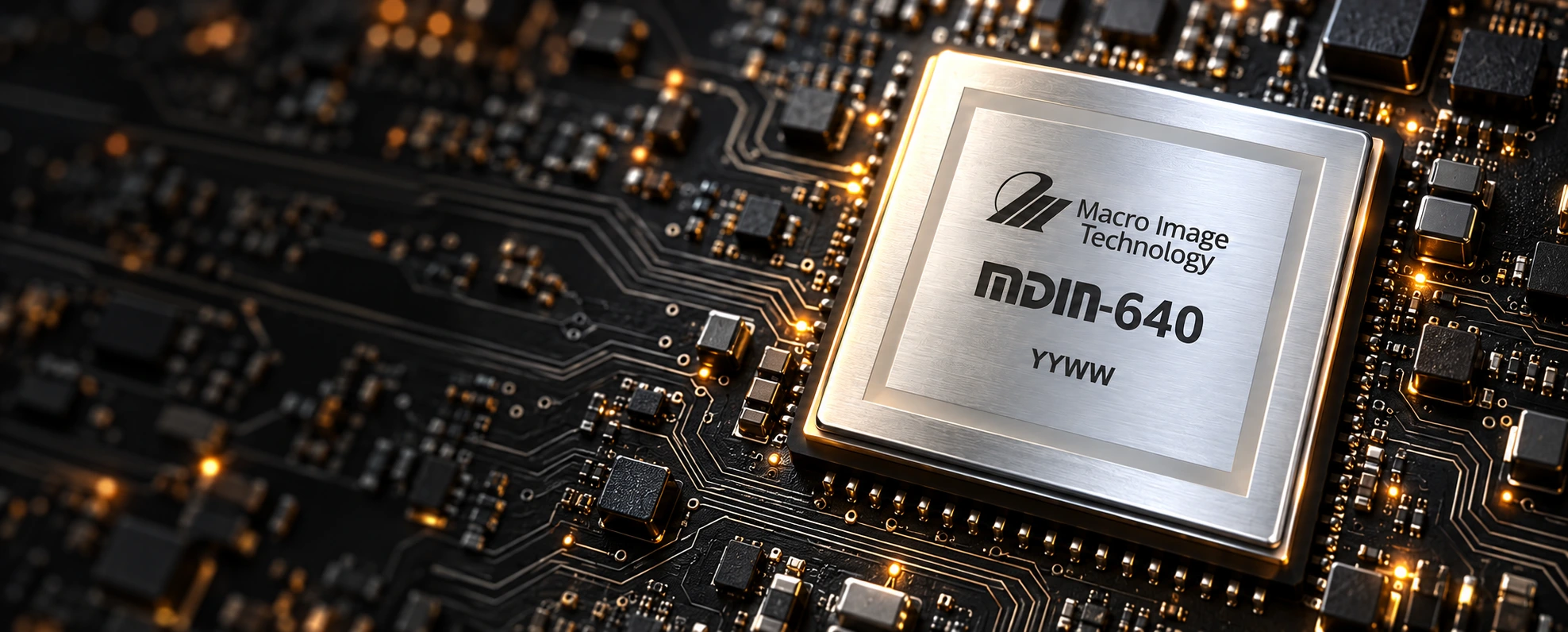

Main Chip
Macro Image Technology MDIN 640
The AMS-MT4K Series Adopts A Highly Integrated MDIN-640 SoC Core Architecture, With Built-in Independent SDRAM And Four Channel Scaling Engine, Providing Stable And Powerful 4K Ultra High Definition Image Processing Capabilities For Professional Audio&Visual Systems.
Core Algorithm · Advanced Sharpness Enhancer
Image Enhancement
Engineered For UHD Video Matrix Processing, These Algorithms Deliver ClearerMore Lifelike Visuals With Precise Detail, Sharp Edges, And Richer Contrast.
Advanced Sharpness EnhancerPowered By A High-Order Programmable Sharpness Engine, It Captures And Enhances Image Details With Pixel-Level PrecisionEnsuring Every Frame Is Crisp, Sharp, And Incredibly Lifelike.
Functional Advantages
The AMS-MT4K_8x8 Features 8 HDMI Inputs And 8 HDMI Outputs, Supporting 4K@60Hz Resolutions With Up To 18Gbps Bandwidth Per Channel.
With Full Support For HDMI 2.0, HDCP 1.4/2.2, And HDR, It Is An All-in-one Video Controller That Allows Users To Flexibly Switch Between 3 Operating Modes: Screen Splicing, Video Matrix, And Multi-Window Display.
High Dynamic Range
Uncompromising Visual Clarity With HDR Technology
The AMS-MT4K Series Video Matrix Offers Full Support For HDR10 And HLG Standards And Features Bidirectional HDR/SDR Conversion, Guaranteeing Seamless Compatibility Across All Legacy SDR And Modern HDR Display Systems.
Cross-Platform Mobile Flexibility
Fully Compatible With Windows, macOS, iOS (iPad), And Android Devices. Featuring Low-Latency Real-Time Responsiveness, It Makes LCD And LED Display Management As Effortless As Using A Mobile App.
Multilingual User Interface
Features Built-In Multilingual Support — Including English, Simplified/Traditional Chinese, Spanish, Portuguese, Russian, Japanese, Korean, Thai, And Vietnamese — Making It Easily Adaptable To Diverse Global Market Demands.
More Features

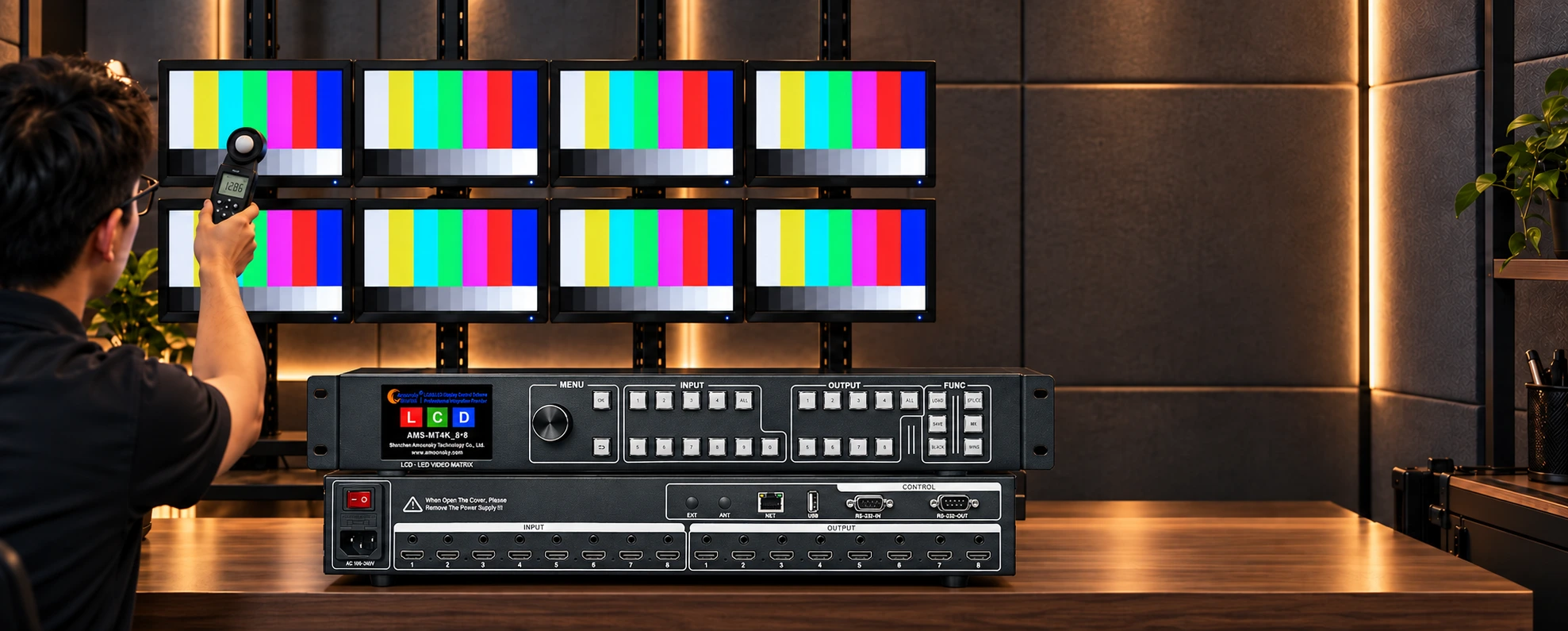

Select From 11 Built-In Test Patterns To Check Your Displays During Installation And Setup.
Applications

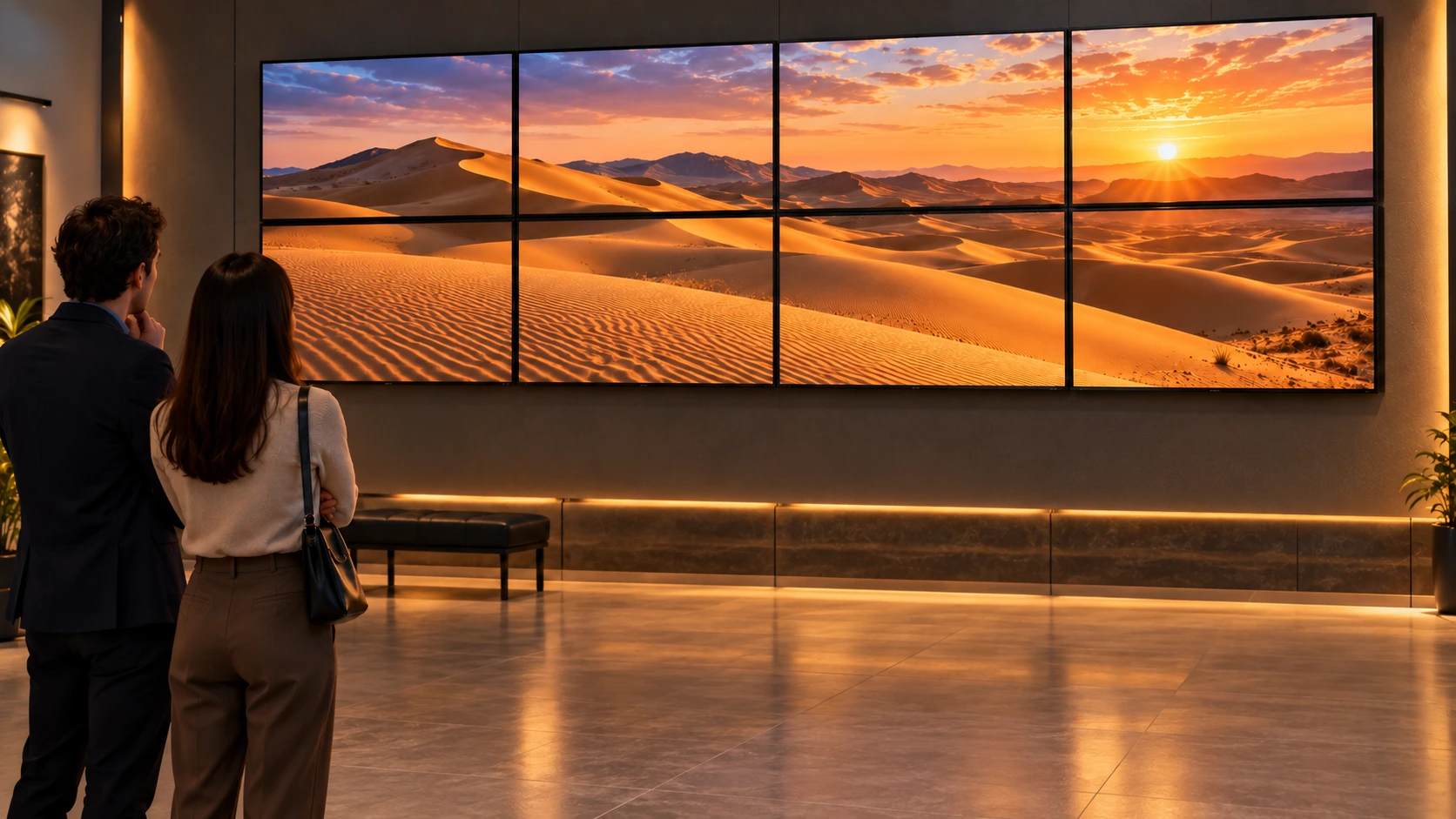

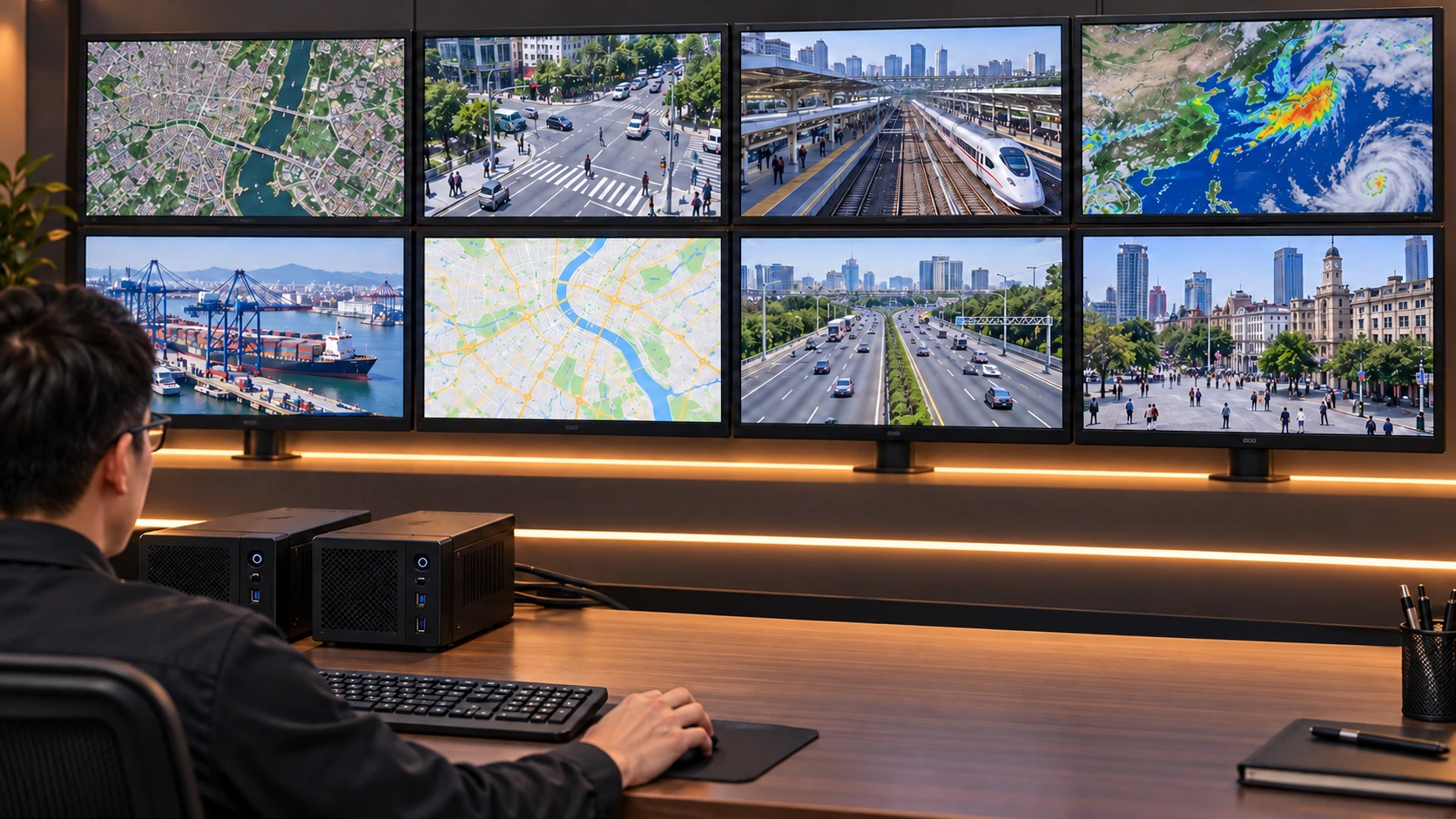

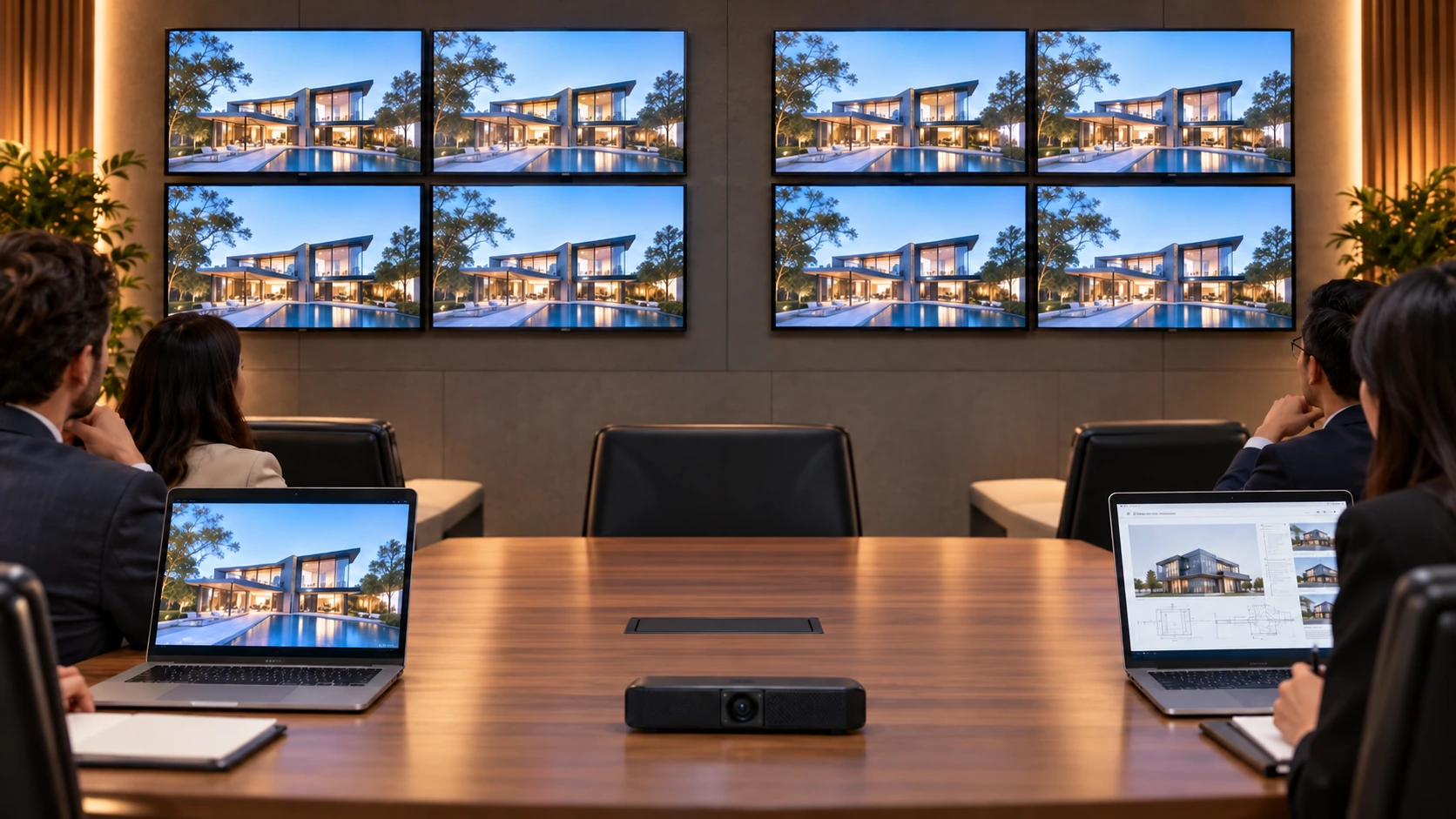

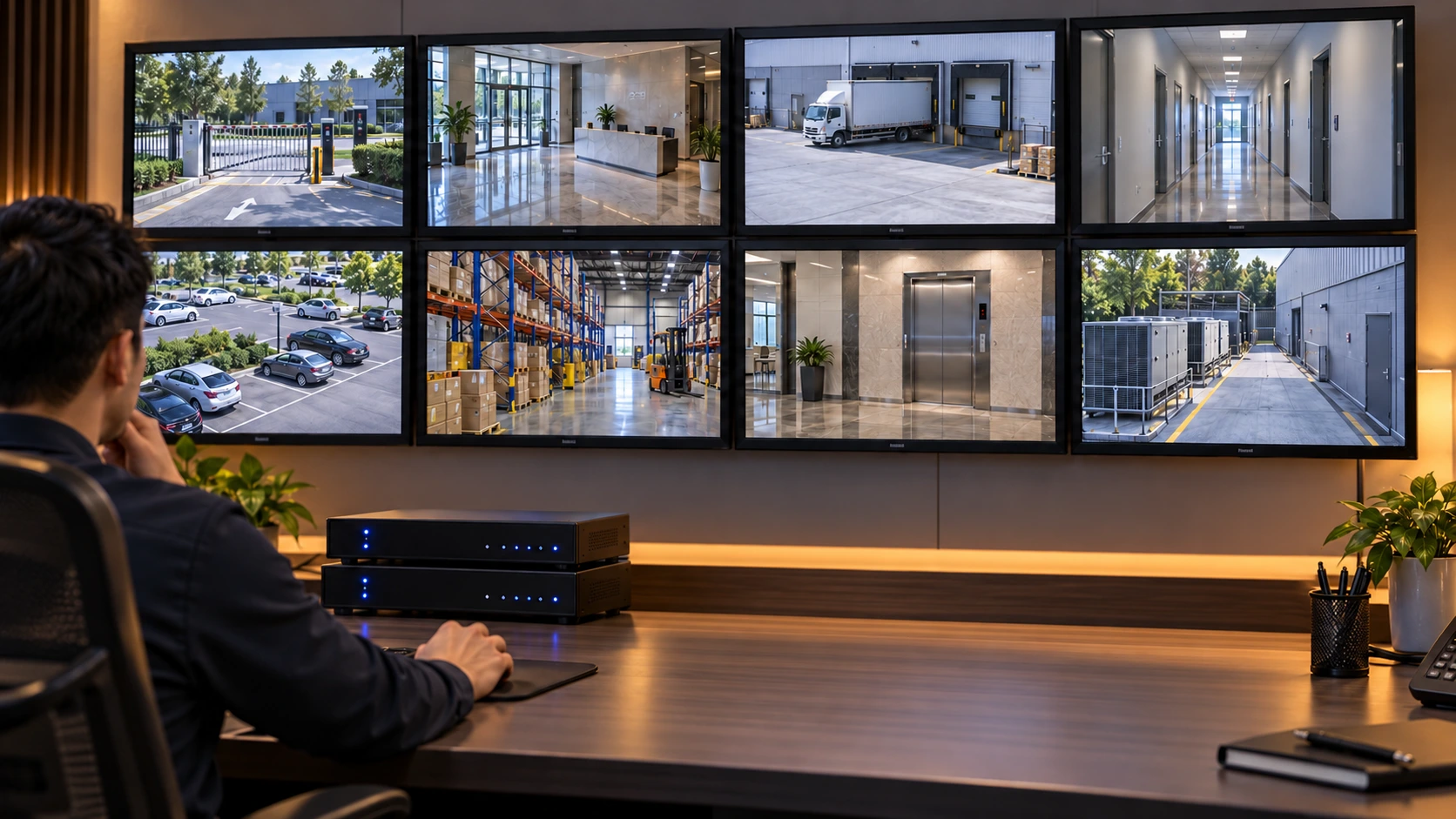

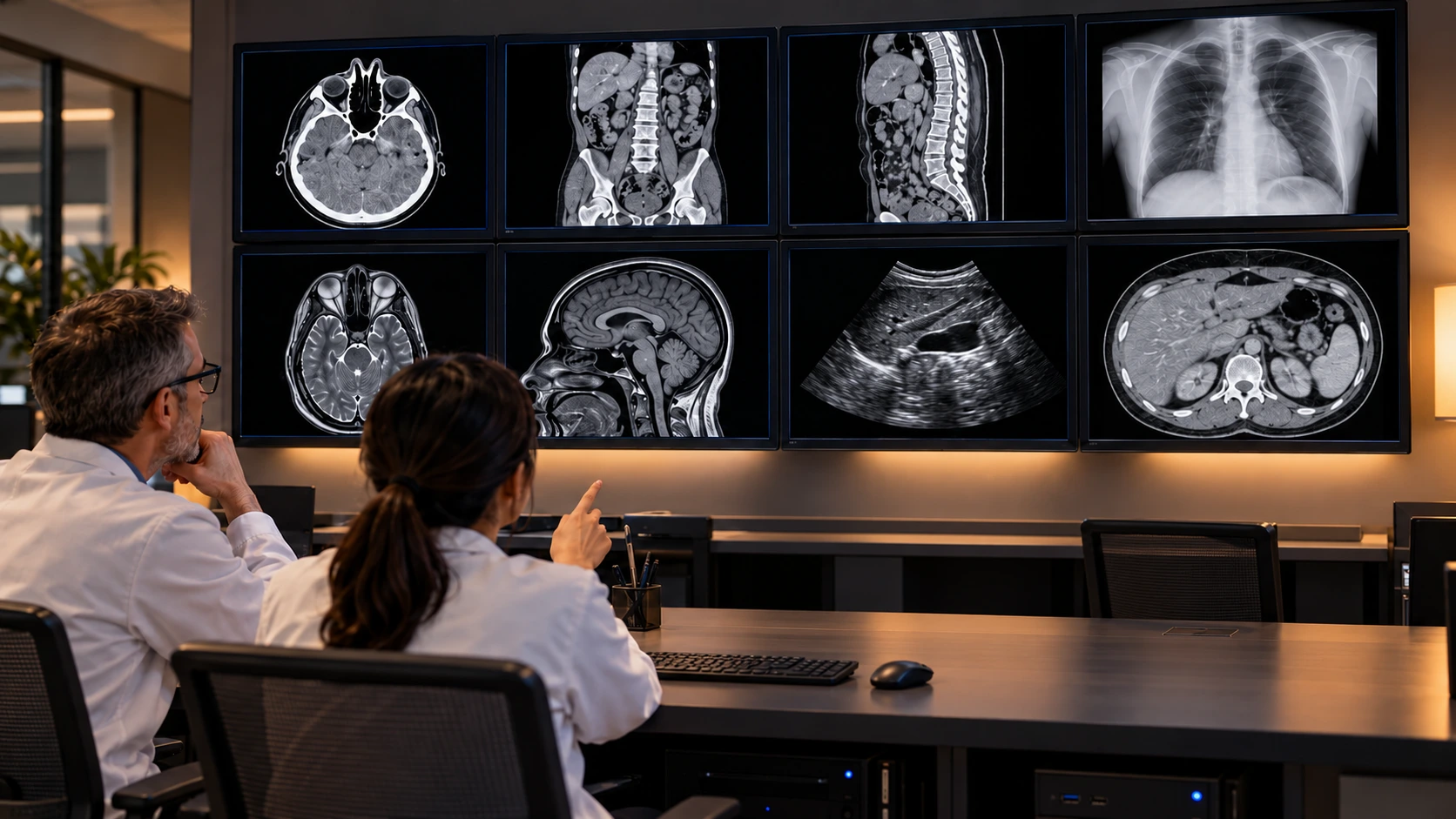

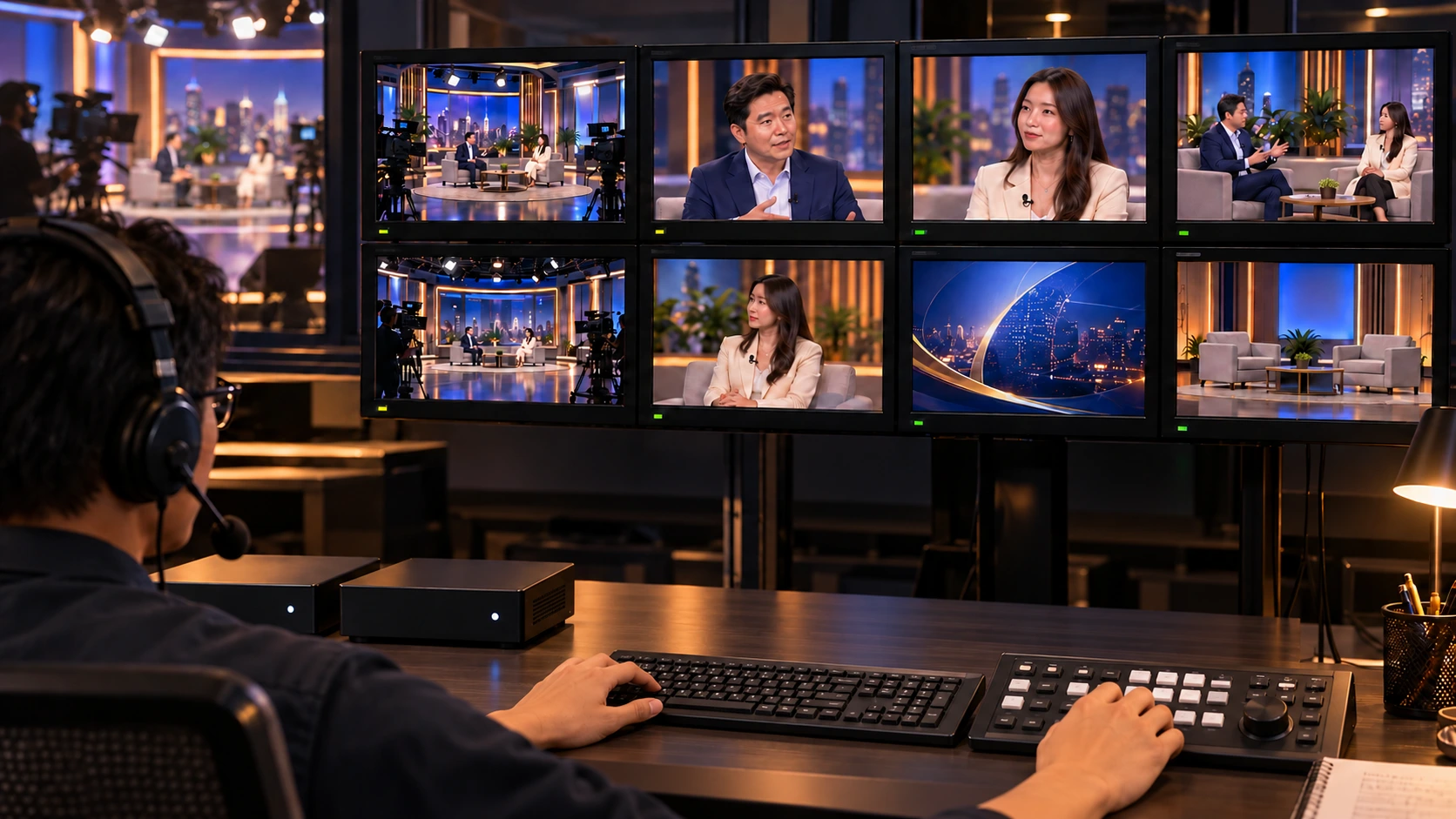

From Multi-Window Monitoring To Video Walls, Match The Right Display Workflow To Each Space.
More Products

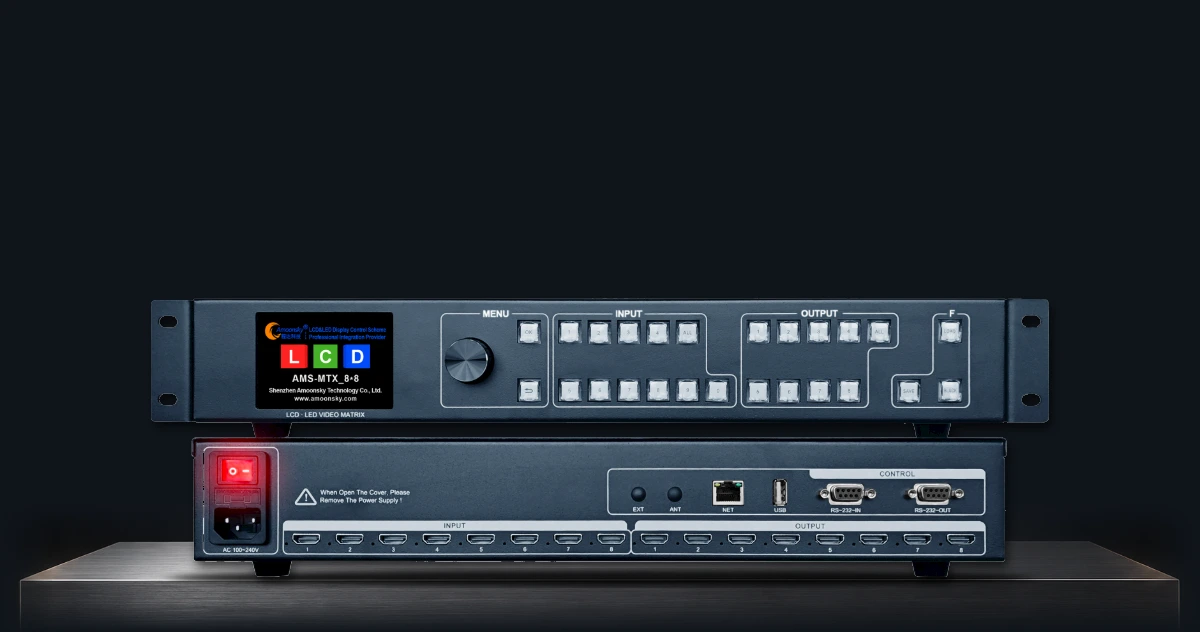

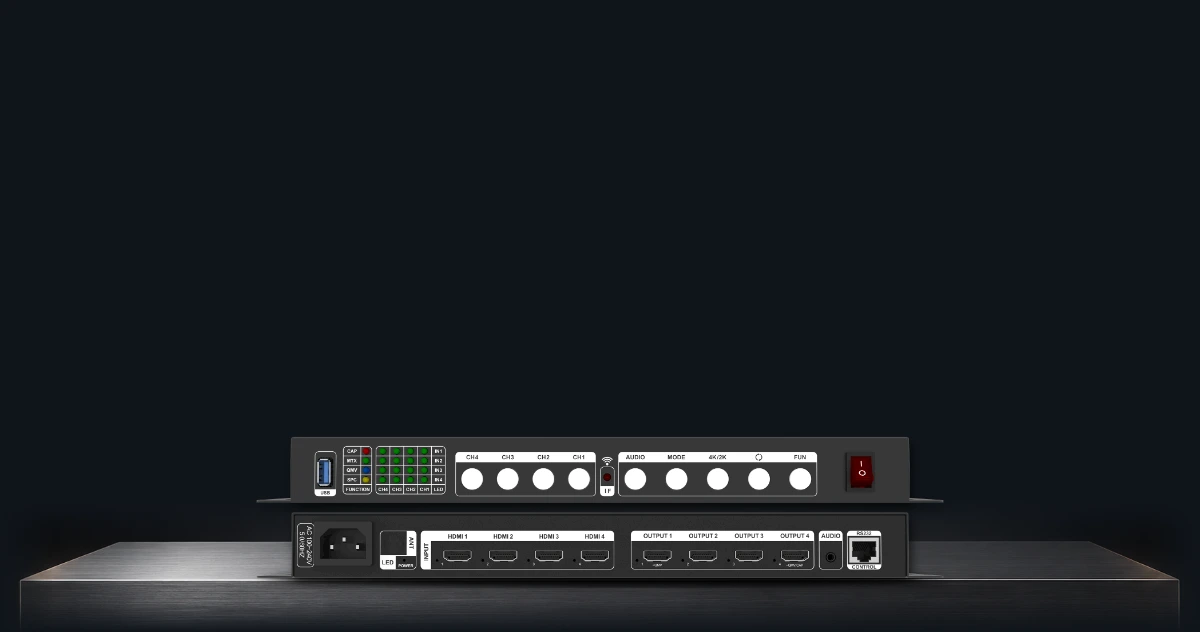

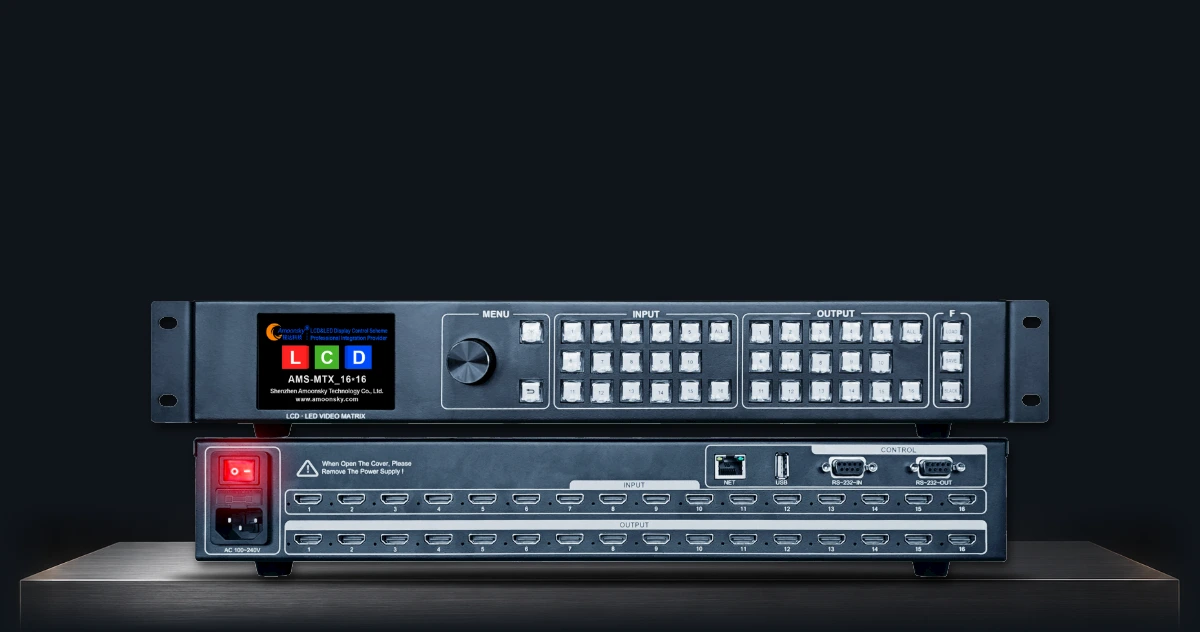

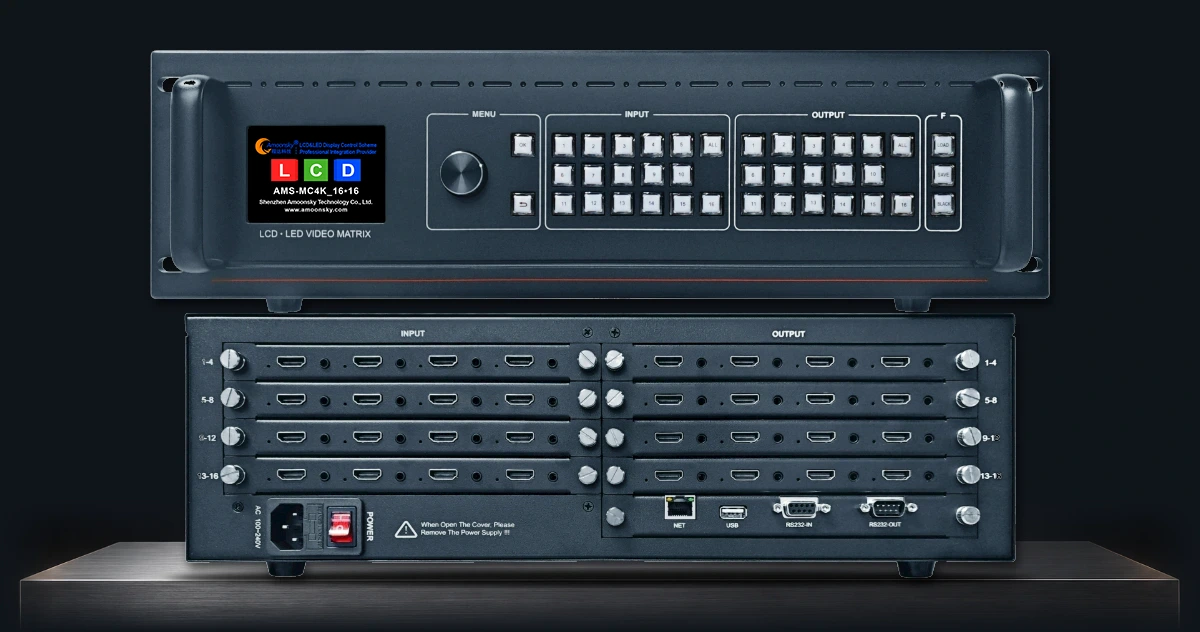

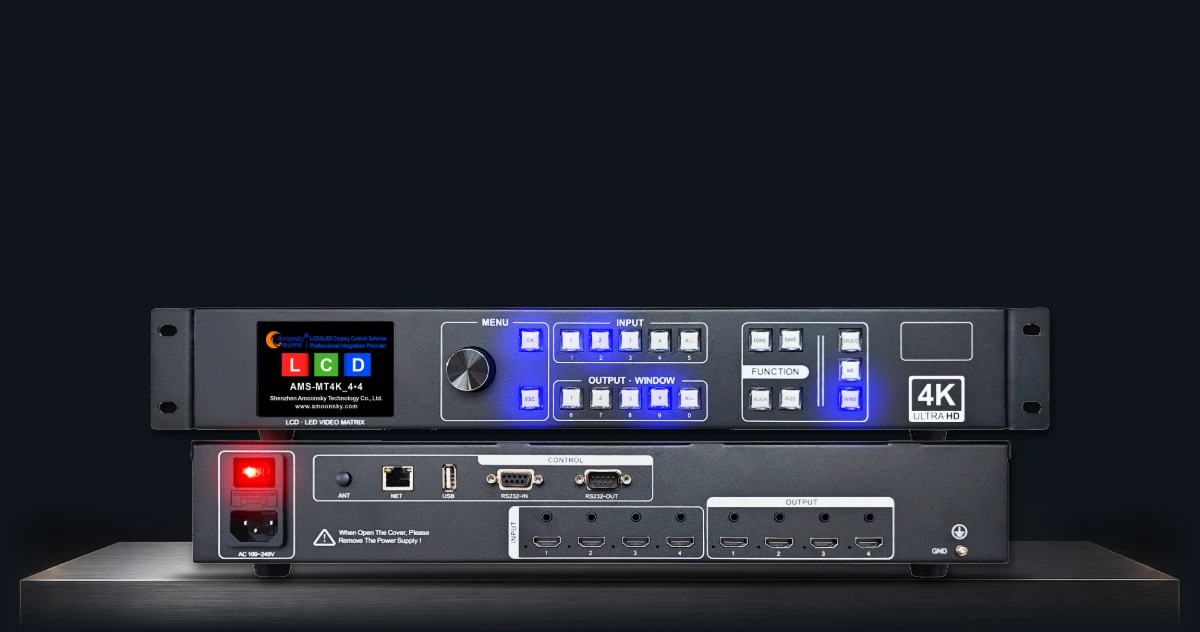

Explore The AMS-MT4K Series And The AMS-MTX Series
| Port Specifications | |
| HDMI Input And Output | 8 HDMI-A Inputs And 8 HDMI-A Outputs; HDMI 2.0, Backward Compatible; Up To 3840 × 2160p@60Hz. |
| Analog Audio | 8 × 3.5mm Audio Inputs And 8 × 3.5mm Audio Outputs; Analog Or HDMI Embedded Audio Selection. |

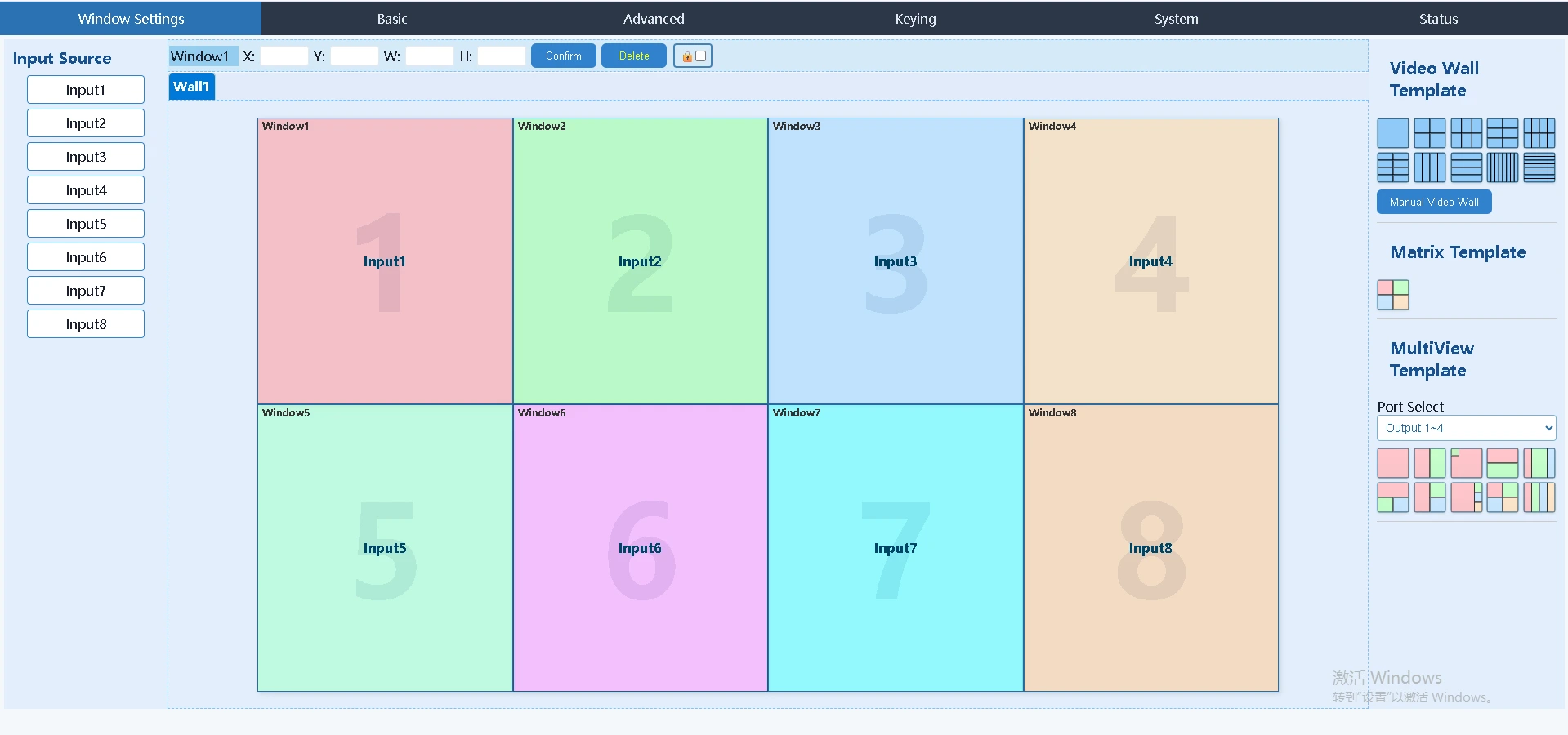

| NET Ethernet Port | RJ45 Ethernet Port For Web‑Based Control Via A Computer And Ethernet Cable. |
| USB Port | For Device Firmware Upgrades. |
| RS232 Serial Port | Serial Control With Loop‑Out For Cascaded Device Control. |
| ANT | Extension Interface; Not Enabled. |
| Performance | |
| Switching Method | Seamless Switching With Synchronized Audio And Video Output. |
| Device Language | English; Other Languages Depend On The Ordered Configuration. |
| General Specifications | |
| Power Supply | Built‑In Mean Well Power Supply; 100–240V AC, 50–60Hz. |
| Operating Environment | 0°C To +60°C; 10% To 90% Relative Humidity, Non-Condensing. |
| Storage Environment | −40°C To +80°C; 10% To 90% Relative Humidity, Non-Condensing. |
| Gross Weight | 4.0 kg |
| Volume Weight | 5.0 kg |
| Warranty | 1 Year. |
| Packing List | |
| Standard Accessories | Power Cable × 1; Certificate × 1; Warranty Card × 1; |
| Model | AMS-MT4K_8x8 |
| Description | Standard Model |
