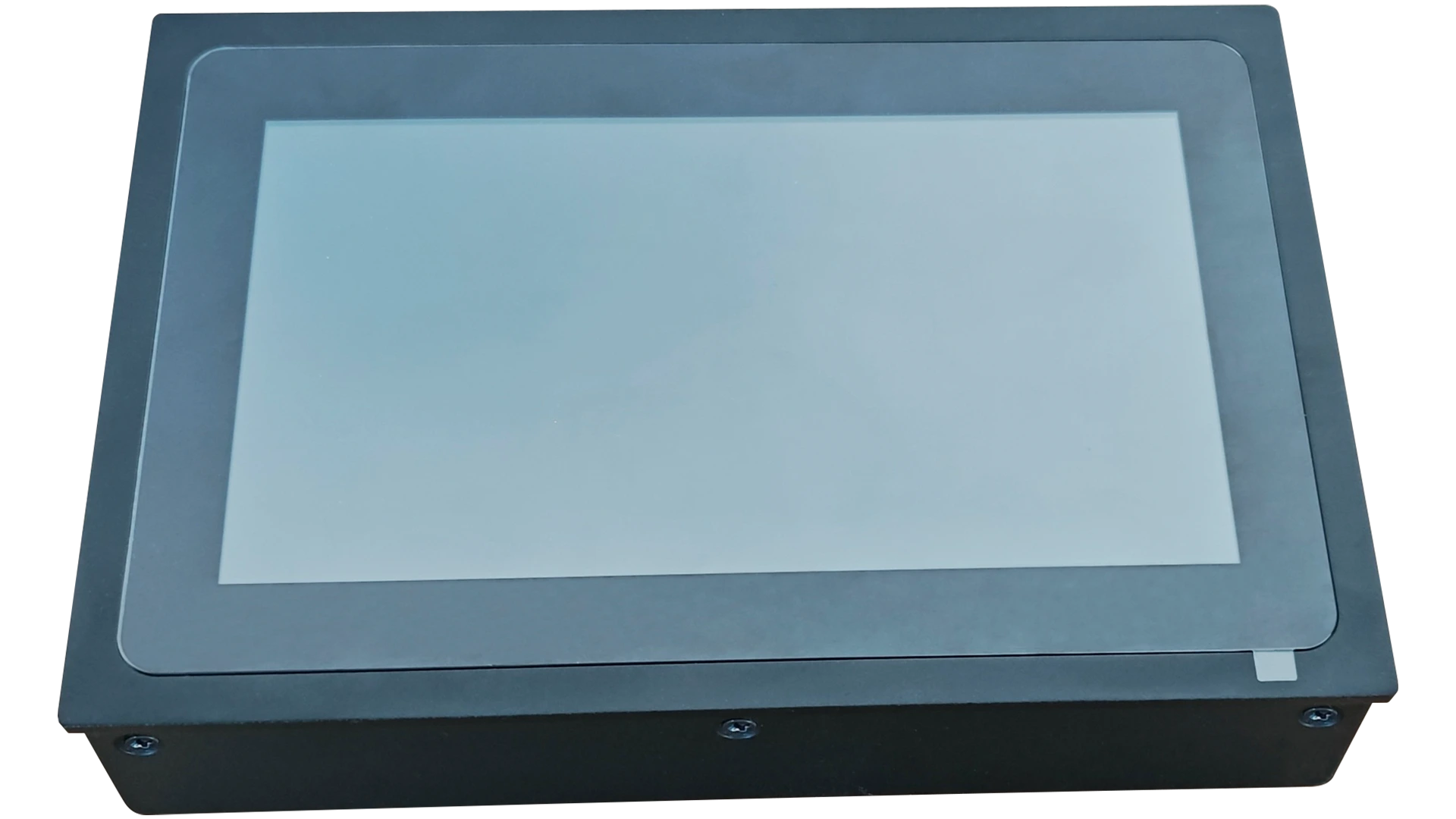

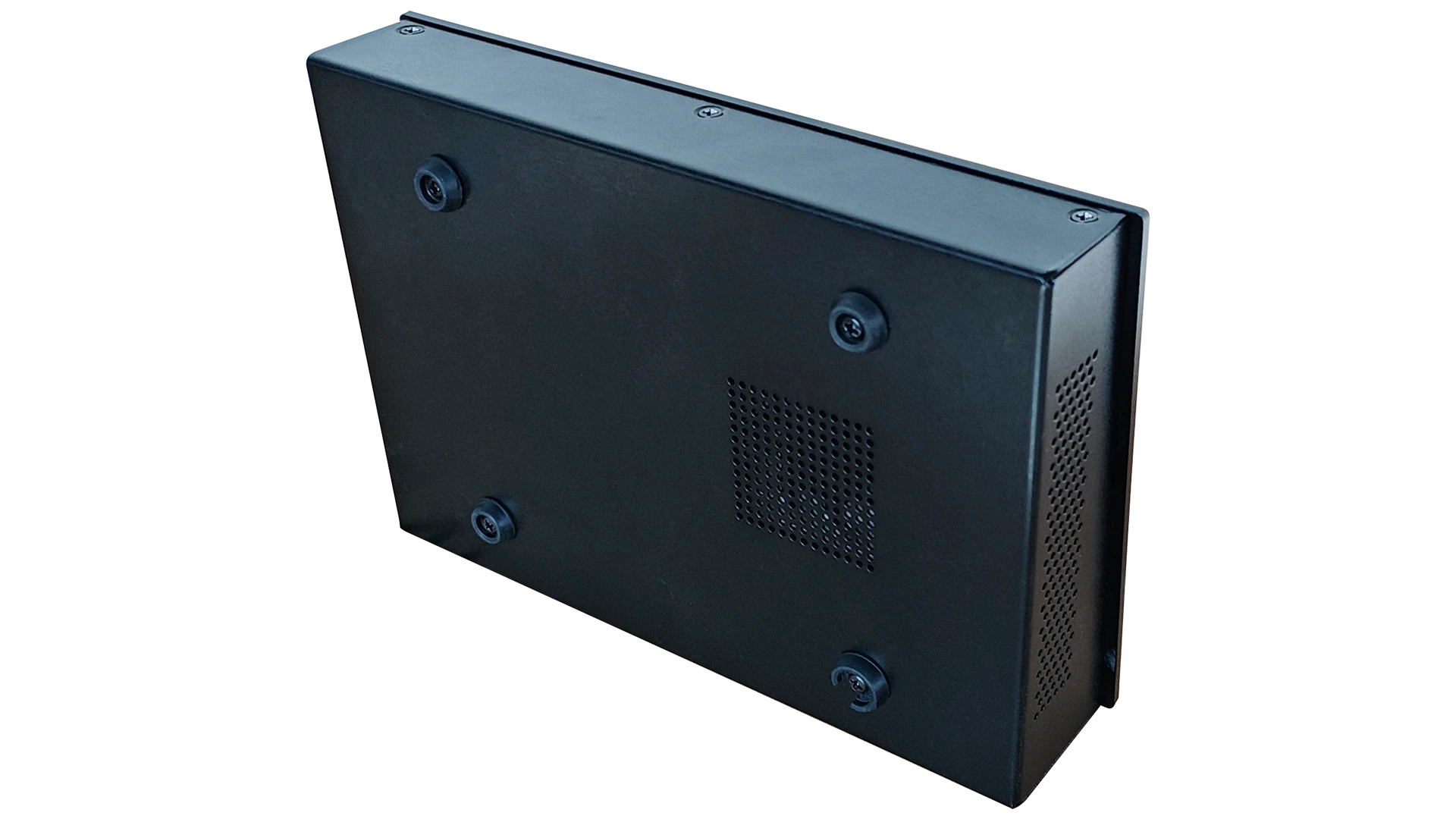

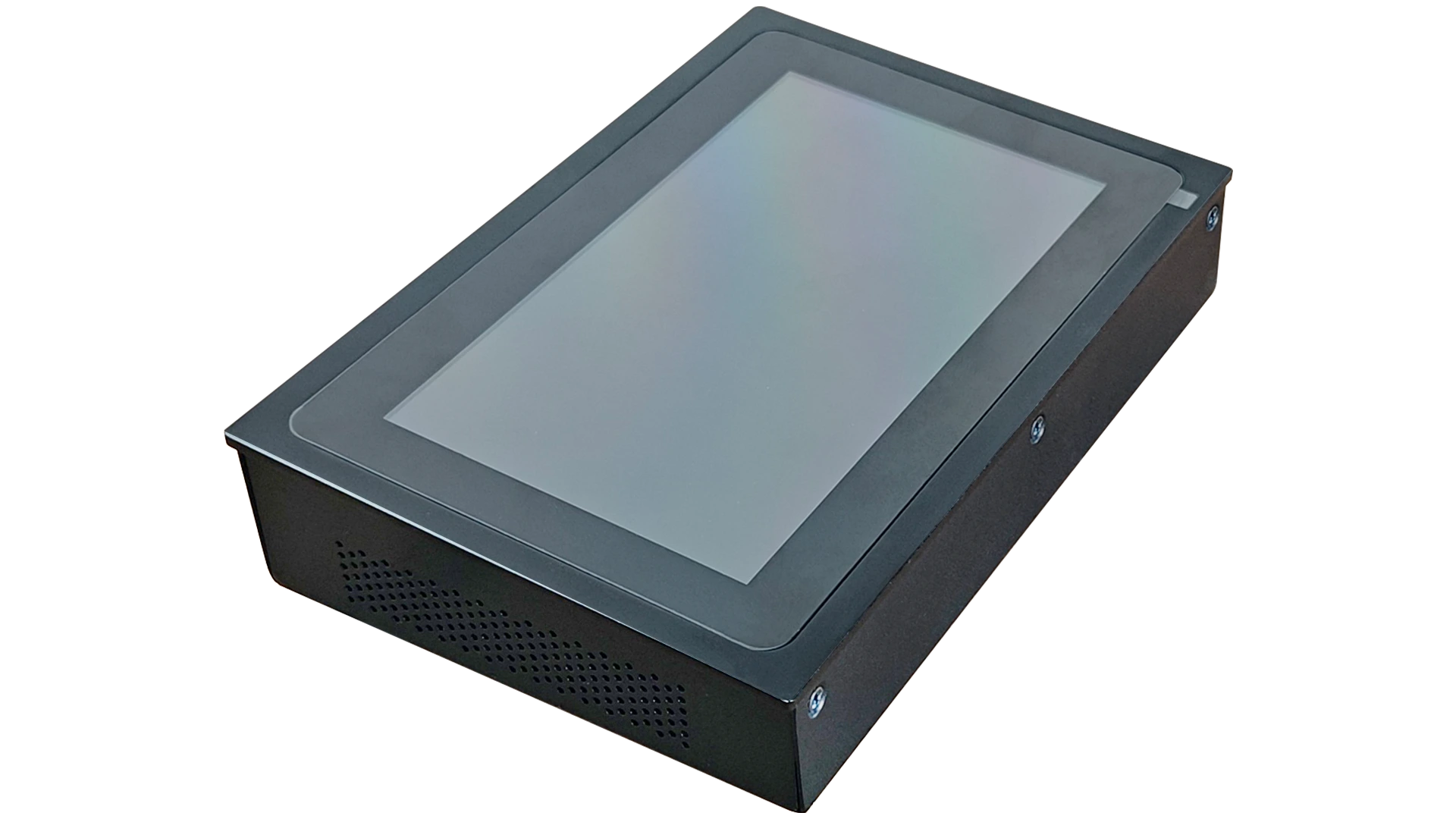

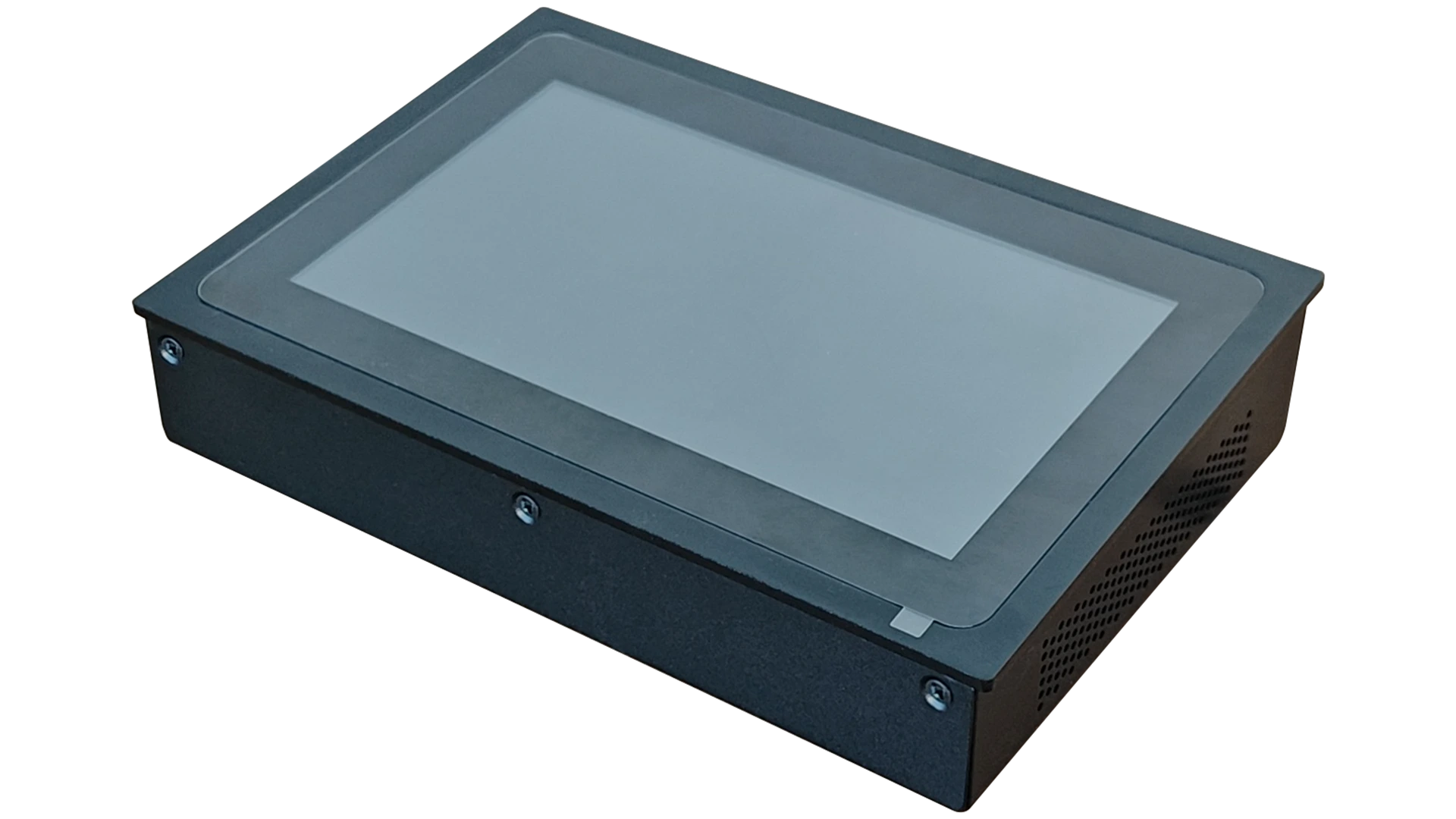

SG2 Signal Generator & Analyzer

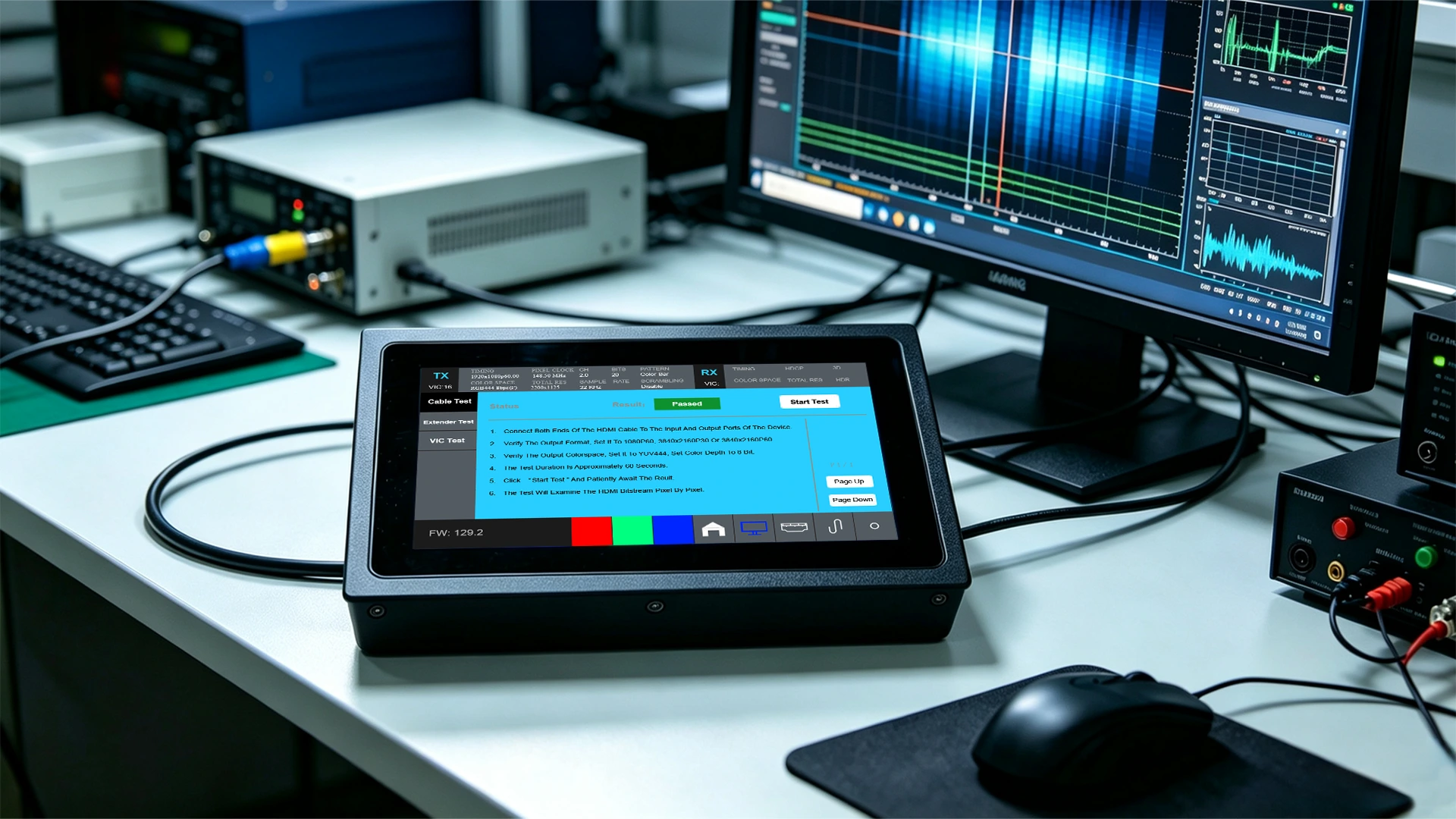

SG2 is an all‑in‑one HDMI2.0 test hardware. Integrate Signal Generator, Signal Analyzer and Loop Tester. Designed for audio‑video R&D, debugging, failure diagnosis and production‑line quality inspection.
Support 4K@60Hz with 18Gbps bandwidth, 7‑inch full‑color touch LCD, built‑in test patterns and multi‑channel audio generator.
Switchable via touch‑screen menu: Generator, Analyzer and Loop Tester.
Output HDMI timing compliant with EIA‑CEA‑861‑F. Independently configure color‑space, bit‑depth and quantization range. Adjustable multi‑channel sine‑wave audio output.

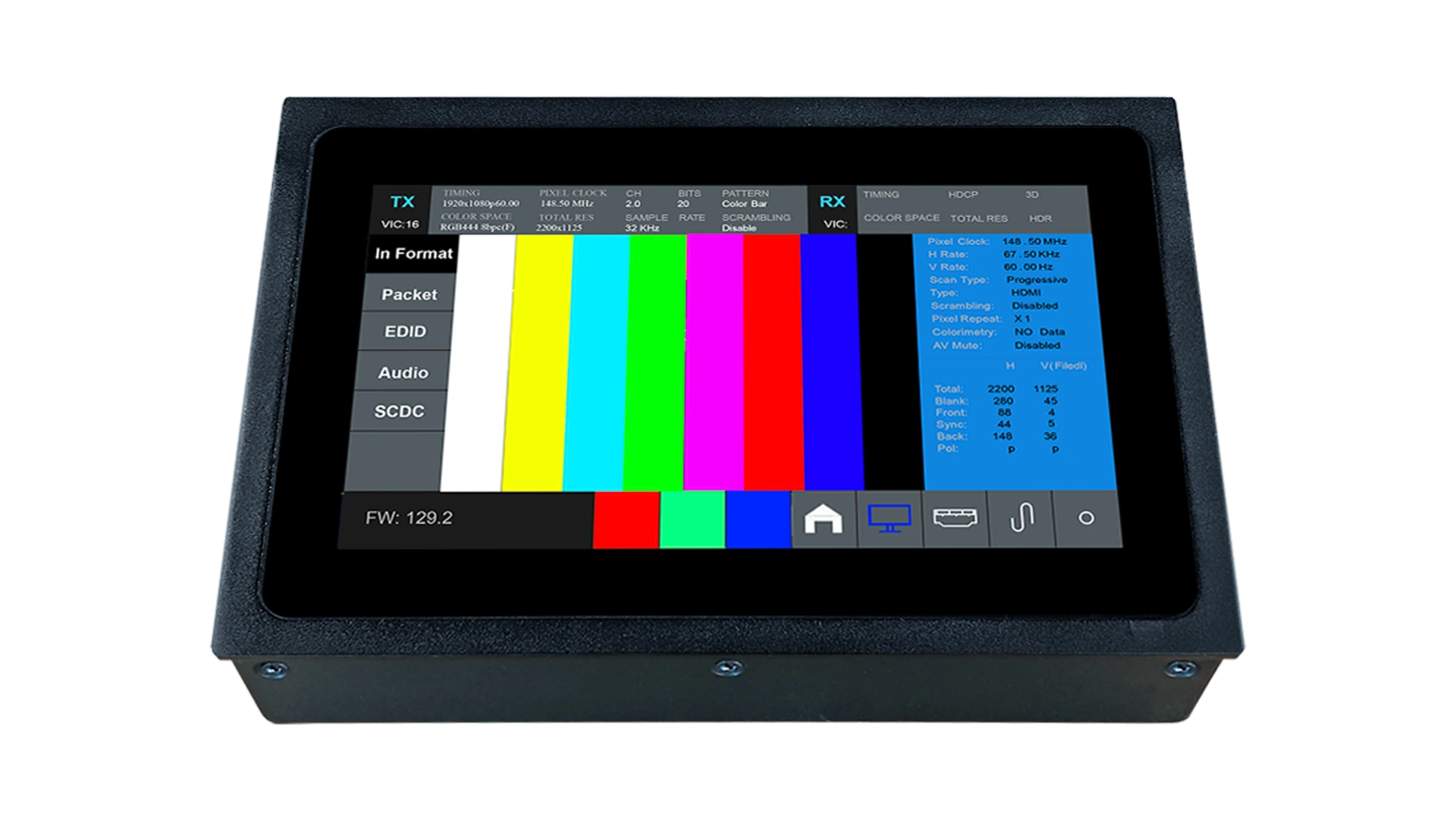

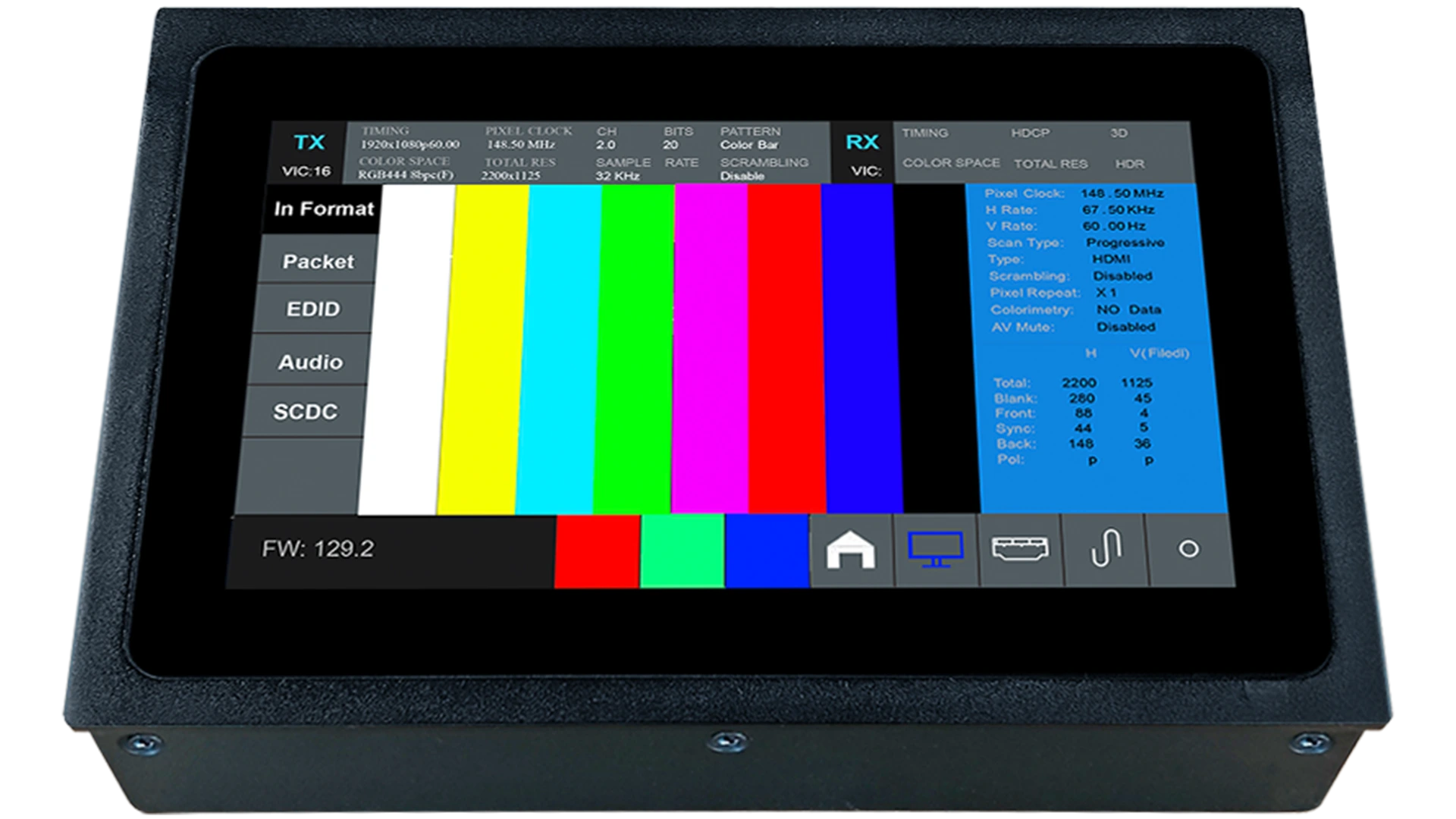

Capture incoming HDMI signal. Parse timing parameters, EDID, SCDC and Info‑frame packets. Built‑in 60+ preset EDID for display device simulation.

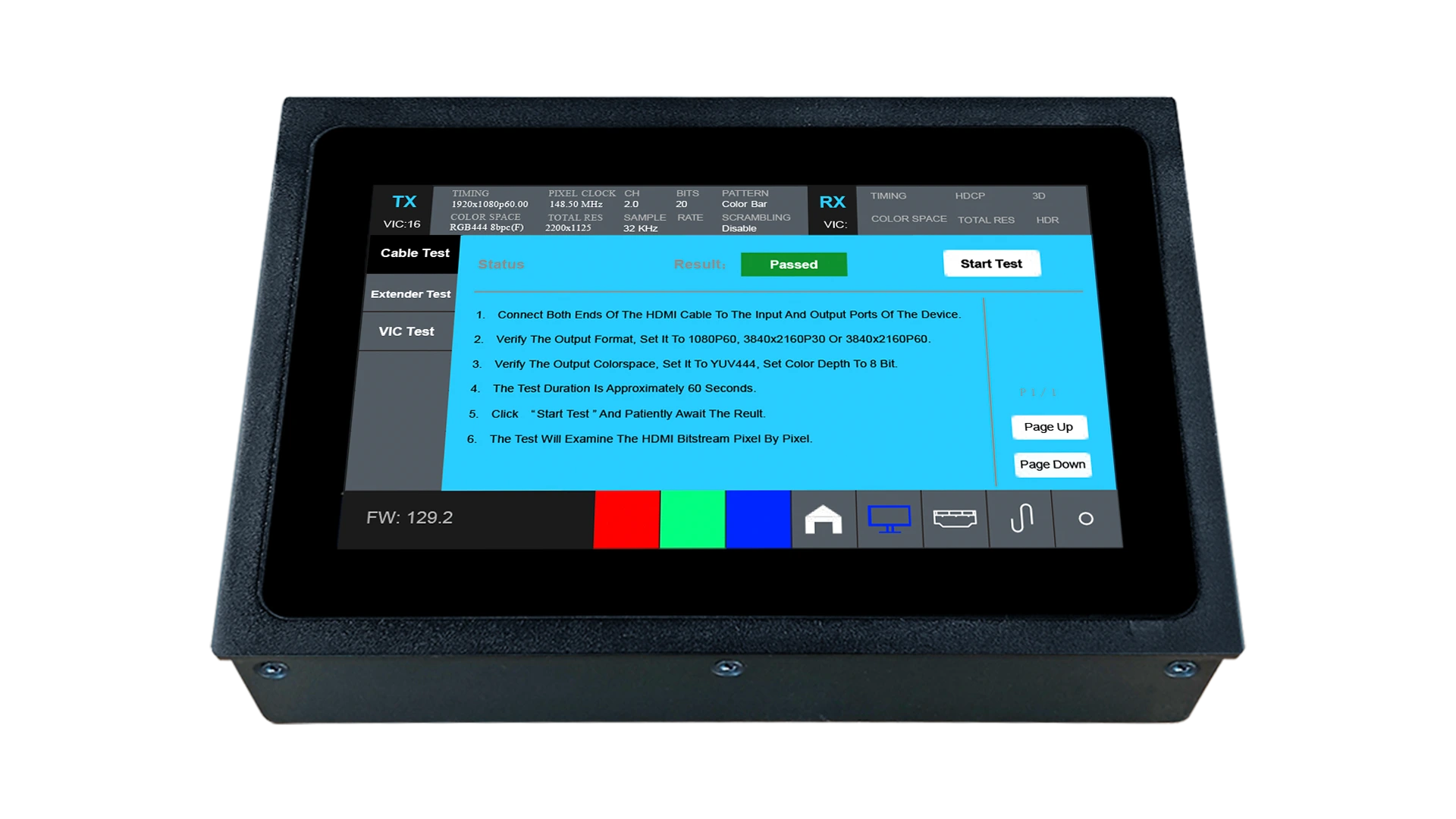

Evaluate HDMI cable quality with pixel‑by‑pixel comparison between transmitted and received data. Typical test duration is about 60 seconds.
Compare EDID, timing, color‑space and packet data to verify performance of HDMI extenders, optical transmitters and converters.
Check whether input signal timing conforms to HDMI VIC standard, identify non‑standard or abnormal video timing sequences.
Hardware is HDMI2.0 (18Gbps), not support HDMI2.1 bandwidth. Only generate LPCM sine‑wave audio, no Dolby / DTS encoded audio output.
From laboratory R&D verification to mass‑production quality‑control station.
TV
Monitor
Matrix
Switch
Splitter
Analyzer
Hardware
Debug TV, monitor, matrix, switch, splitter and related HDMI peripheral hardware during product development phase.
Performance verification for HDMI cables, extenders, fiber‑optic transmission equipment and signal conversion modules.
Locate compatibility issues about EDID, HDCP, SCDC and HDR, capture and analyze raw HDMI packet information.
Deployed on manufacturing station for batch‑product function test, quality screening and consistency inspection.

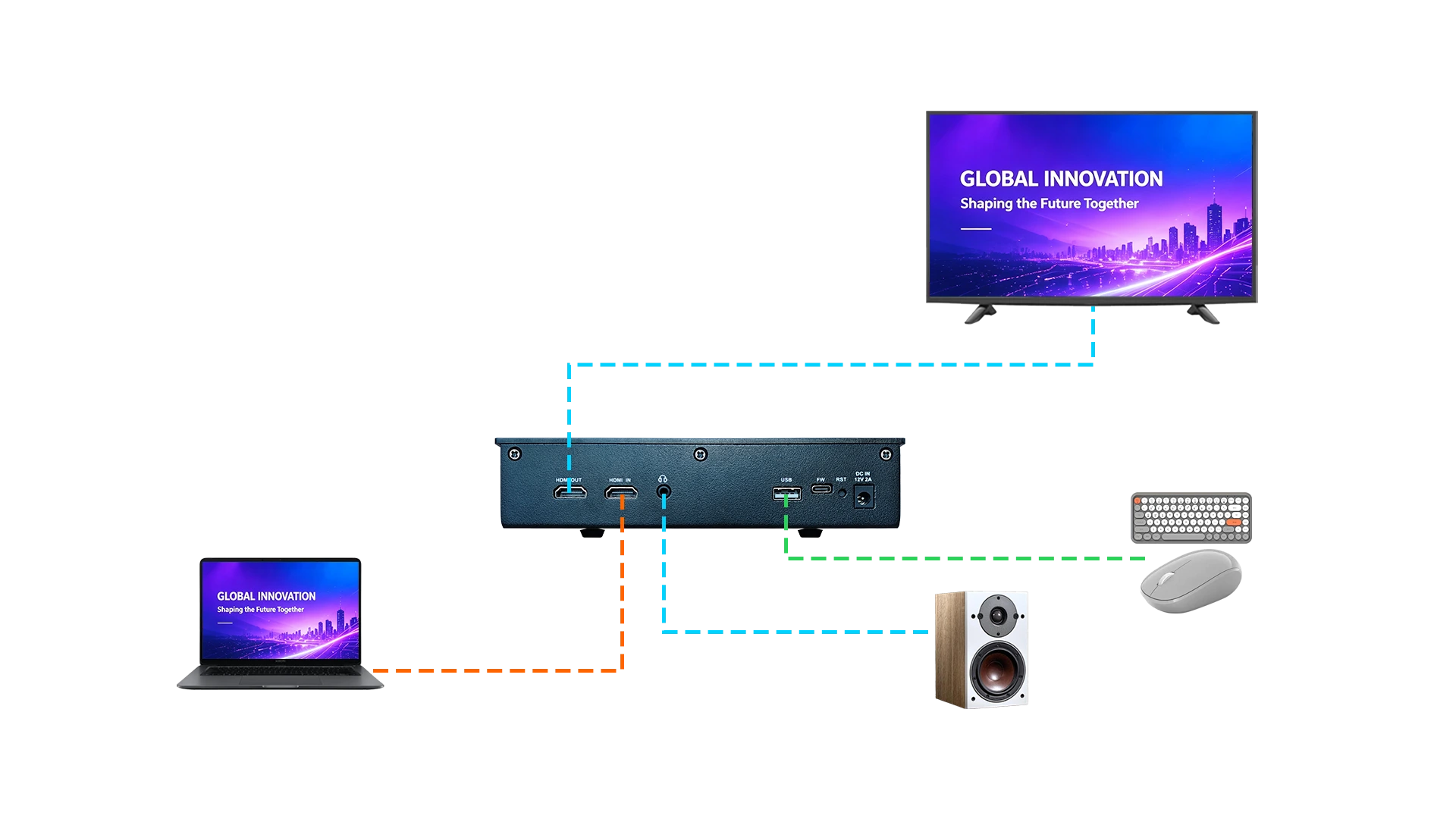

Display
Laptop
Audio
Keyboard
Mouse

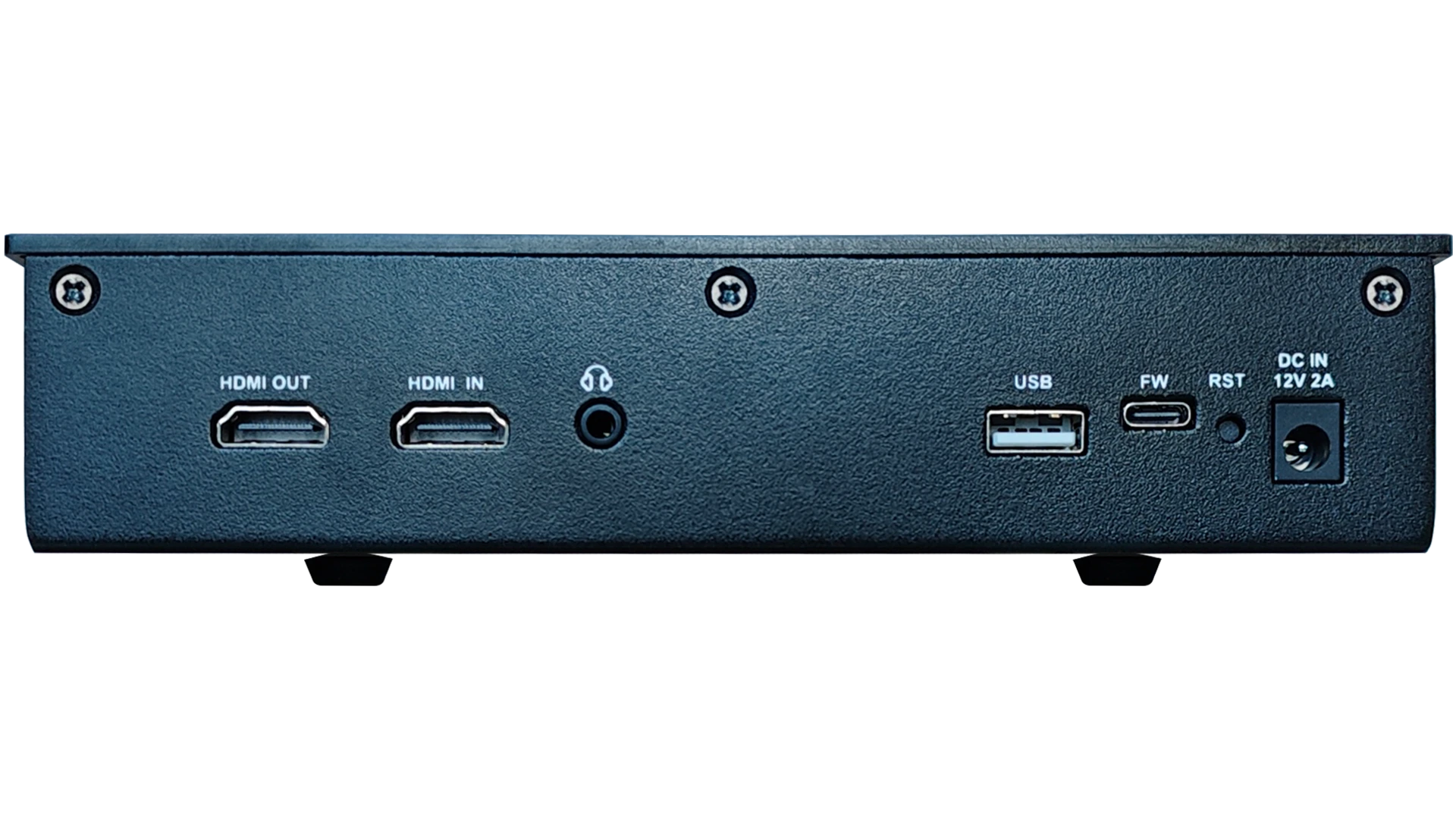

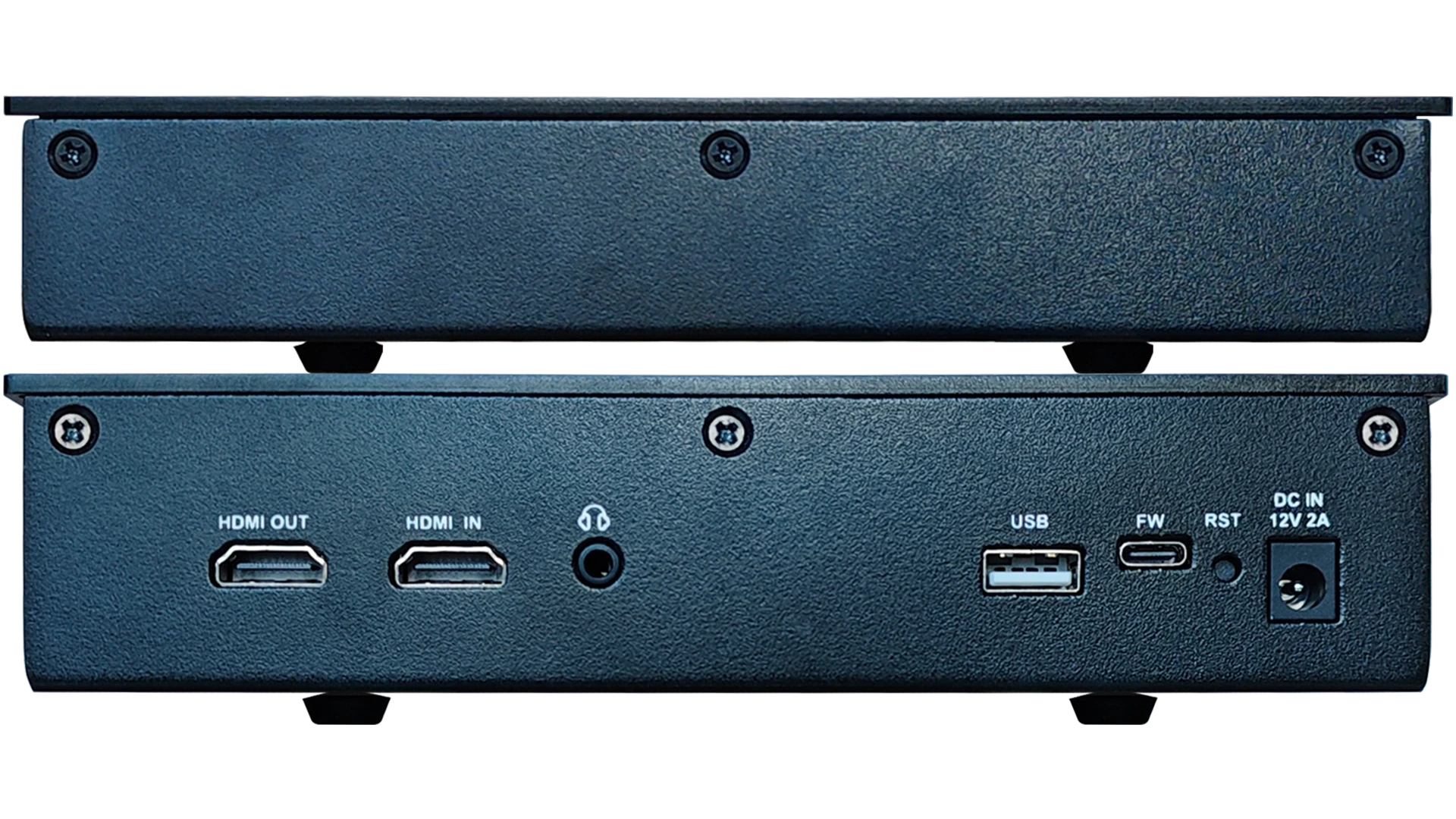

| Port Specifications | |
| Input · Output Port | Interface Type: HDMI‑A Socket, Quantity: 1* Input & 1* Output; Signal Standard: HDMI2.0 Backward compatible; Resolution: VESA Standard, ≤3840X 2160p@60Hz; |
| USB Port | USB‑A, Can Import Or Export Data Through USB Disk; |
| Audio Port | 3.5mm, Left&Right Channels, Listening To Input&Output Audio; |
| FW Port | Interface Type: Type‑C, Debugging Interface; |
| Power Port | DC Female Connector, DC12V 2A |
| RST | Reset Button, Hold Down 3 Seconds To Reset The Device; |
| General Specifications | |
| Power Supply | Adapter Power Supply, Input: 100~240V AC, 50~60Hz; Output:12V_2A; |
| Temperature | Storage : T:-40°C ~ +80 °C ､ H: 10% ~ 90%, Non‑condensing; Working: T: 0°C ~ +60 °C､H: 10%~ 90%, Non‑condensing; |
| Machine Size | 196mm (Length) x 132mm (Width) x 42mm (Height) |
| Packing Size | 255mm (Length) x 190mm (Width) x 135mm (Height) |
| Product Weight | Gross Weight: 1.0Kg ; |
| Package Weight | Volume Weight: 1.5Kg; |
| Warranty | 1 Year; Note: All Rated Voltages Are On Average ±10%; |
| Packing List | |
| Standard | Adapter Power * 1, Certificate * 1; Warranty Card * 1; |
| Model | SG2 |
| Description | Standard Model |
| P/N | PN202511003 |
