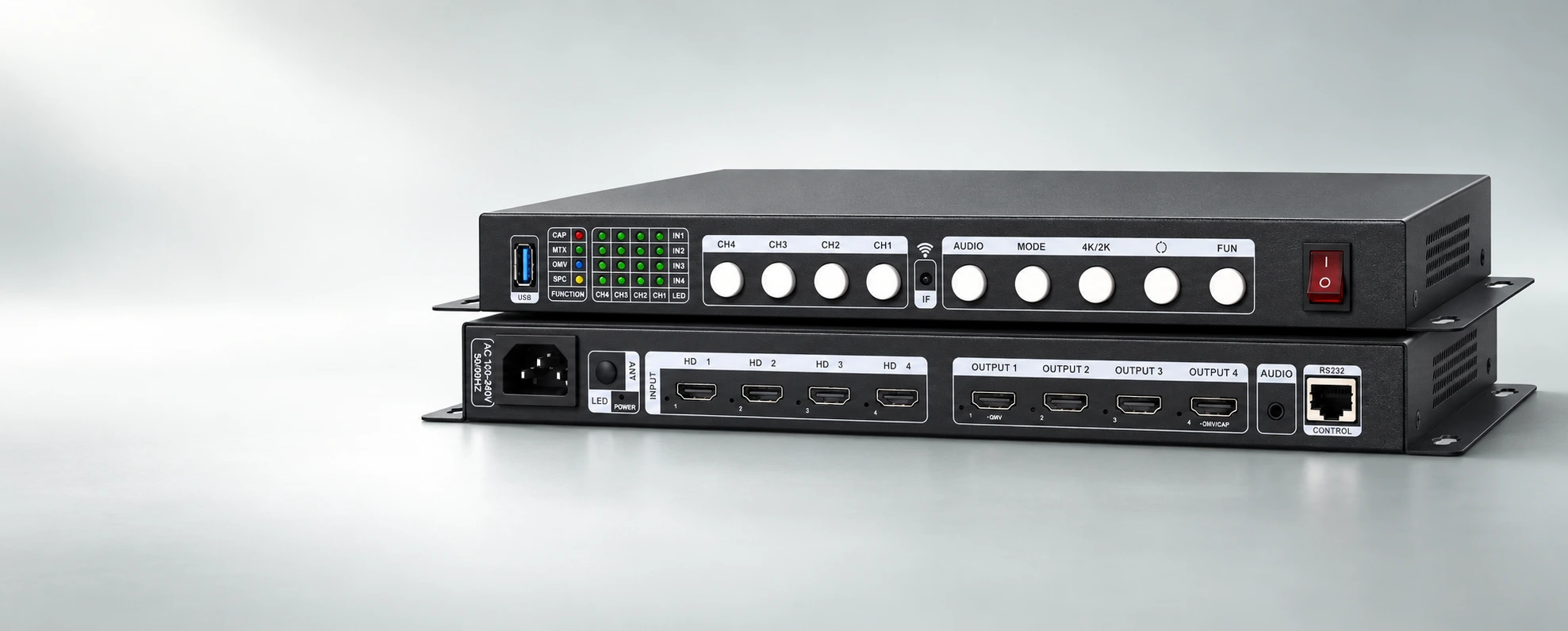

MTX_4-4 Multi-Function Magic Controller
Multi-Function Magic Controller
HD Video Matrix
Quad Multi-Viewer
LCD Video Splicer
USB Video Capture
Experience True Seamless Switching
Eliminate The Black Screens And Flickering Of Traditional Video Matrices. Powered By Internal High-Speed Cache And Frame Synchronization Technology The Amoonsky AMS-MTX_4x4 Delivers Instantaneous, Seamless Switching For A Silky-Smooth, Broadcast-Grade Visual Experience

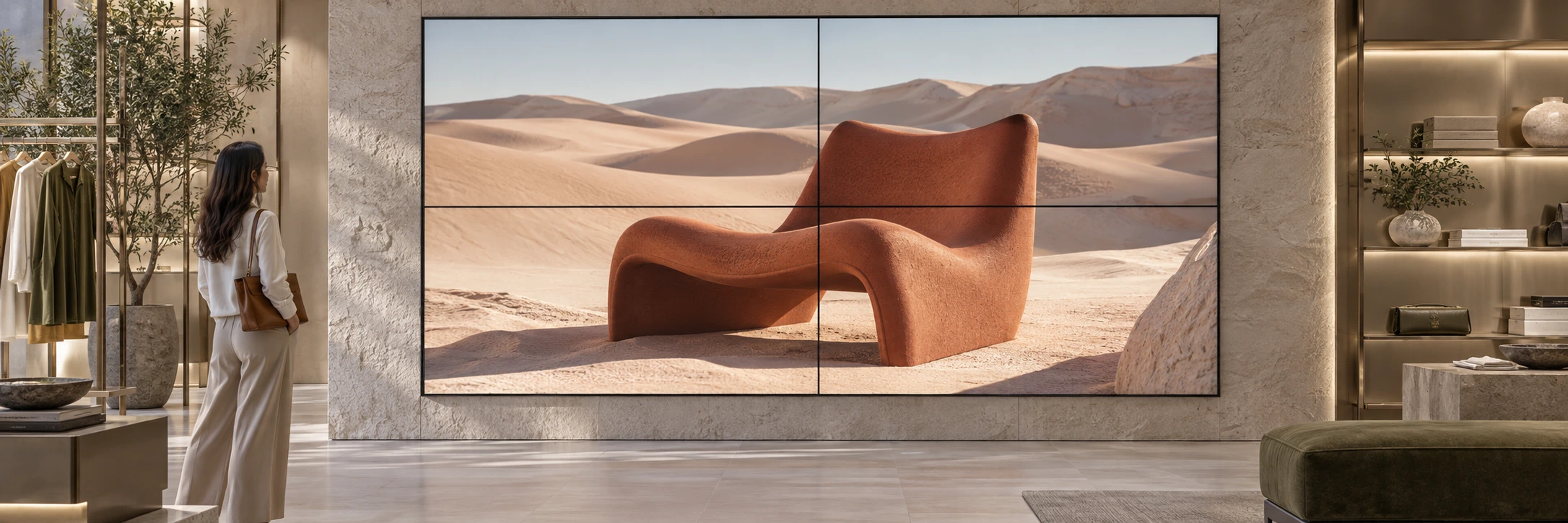

Built-in Smart Splicing Mode Build Your Video Wall In Seconds
180° Rotation — Minimizes Splicing Gaps For A Flawless Visual Experience

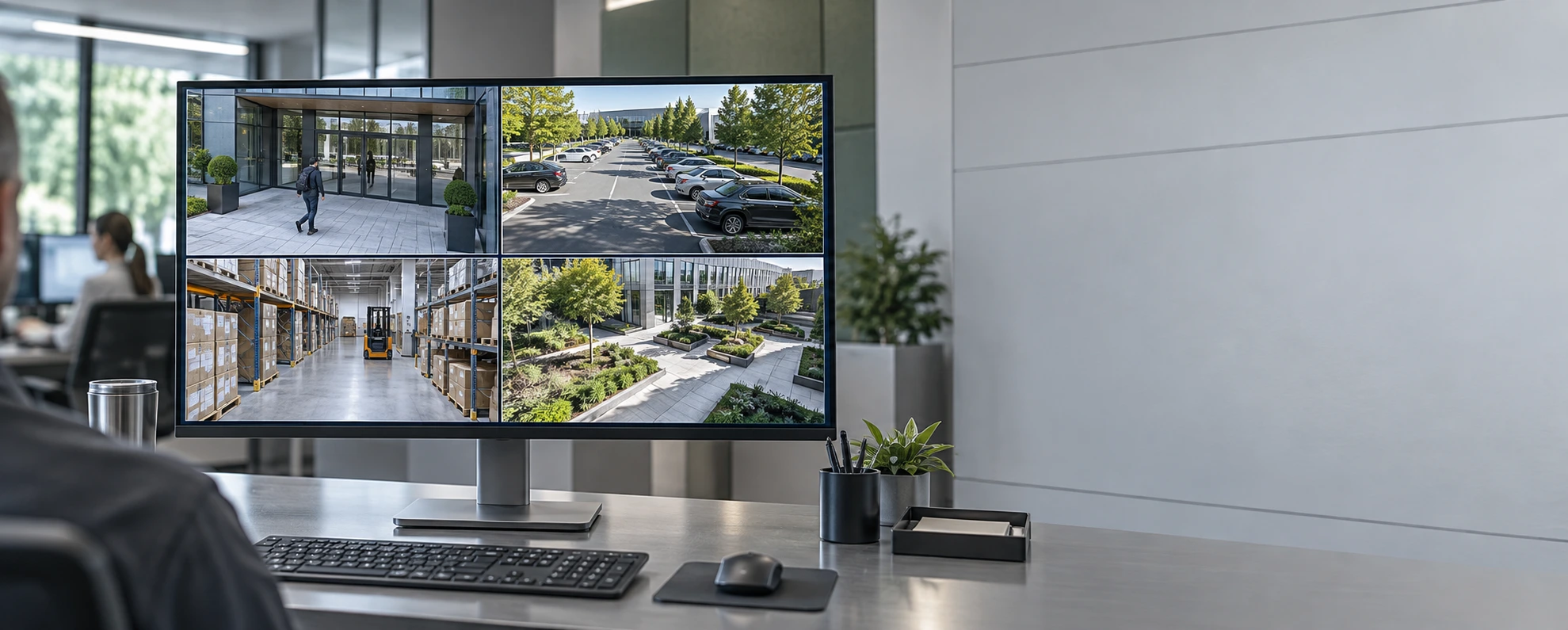

Multi-Window Display Flexible Layouts On Demand
Wide Range Of Applications

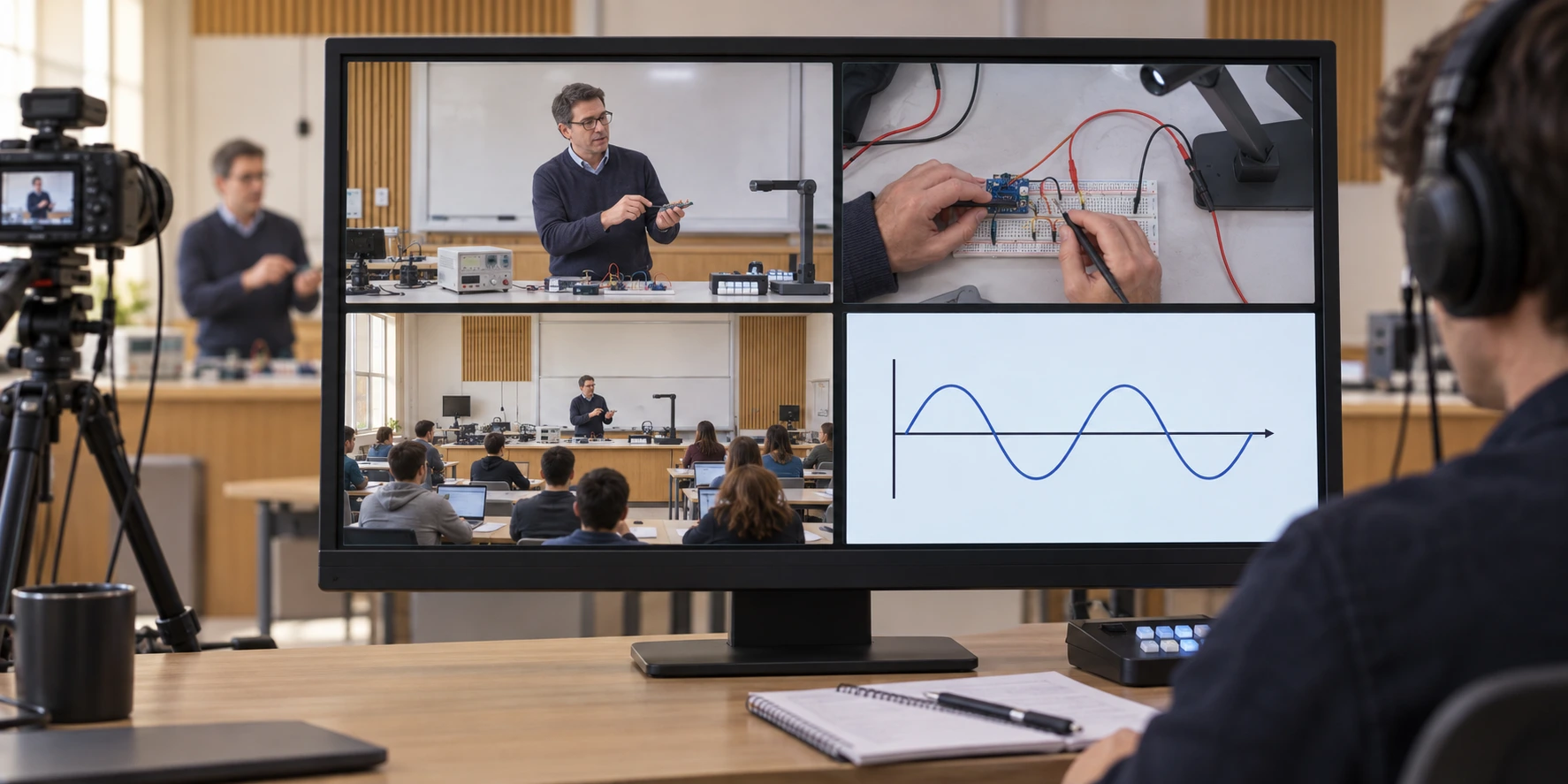

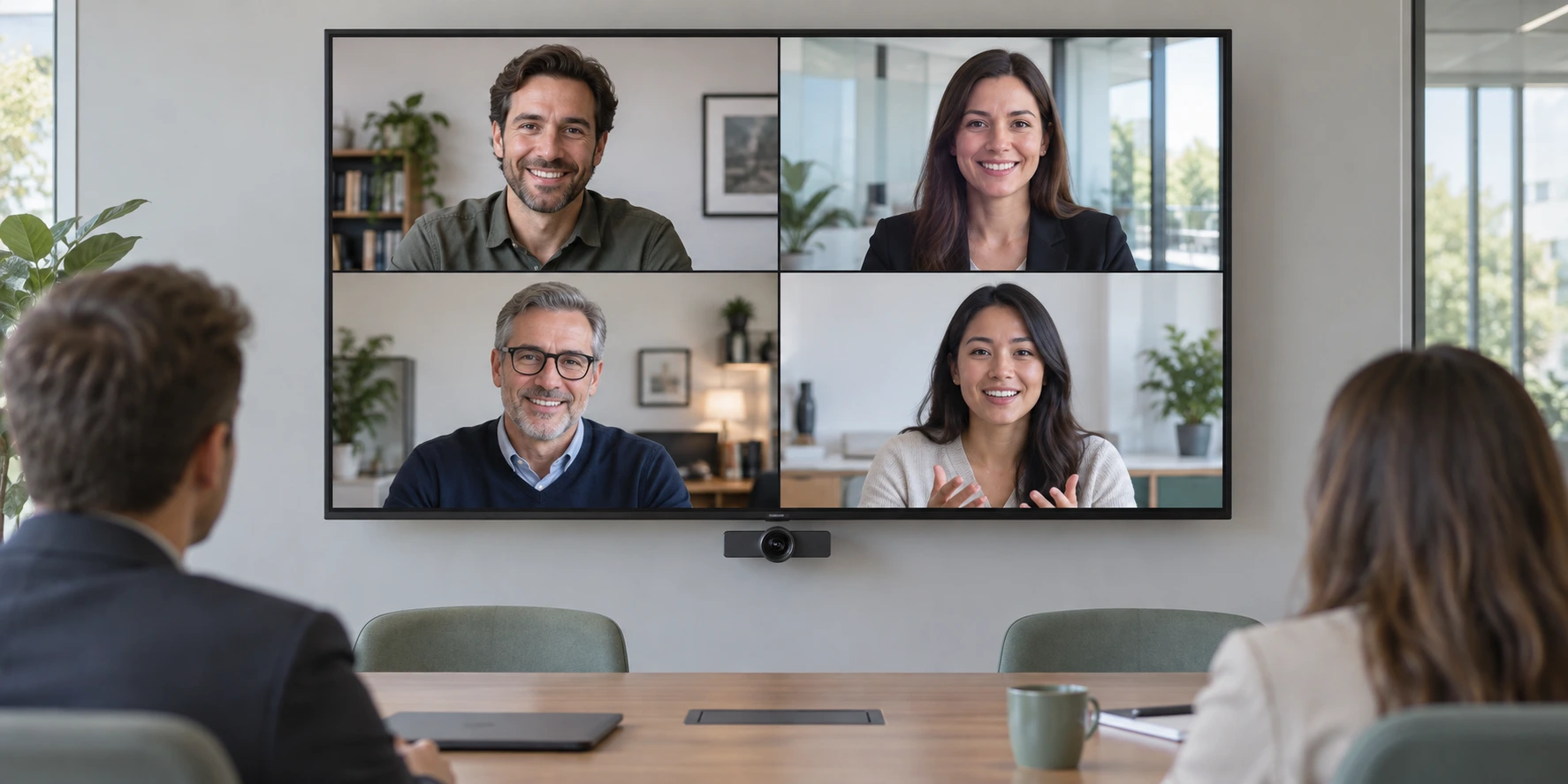

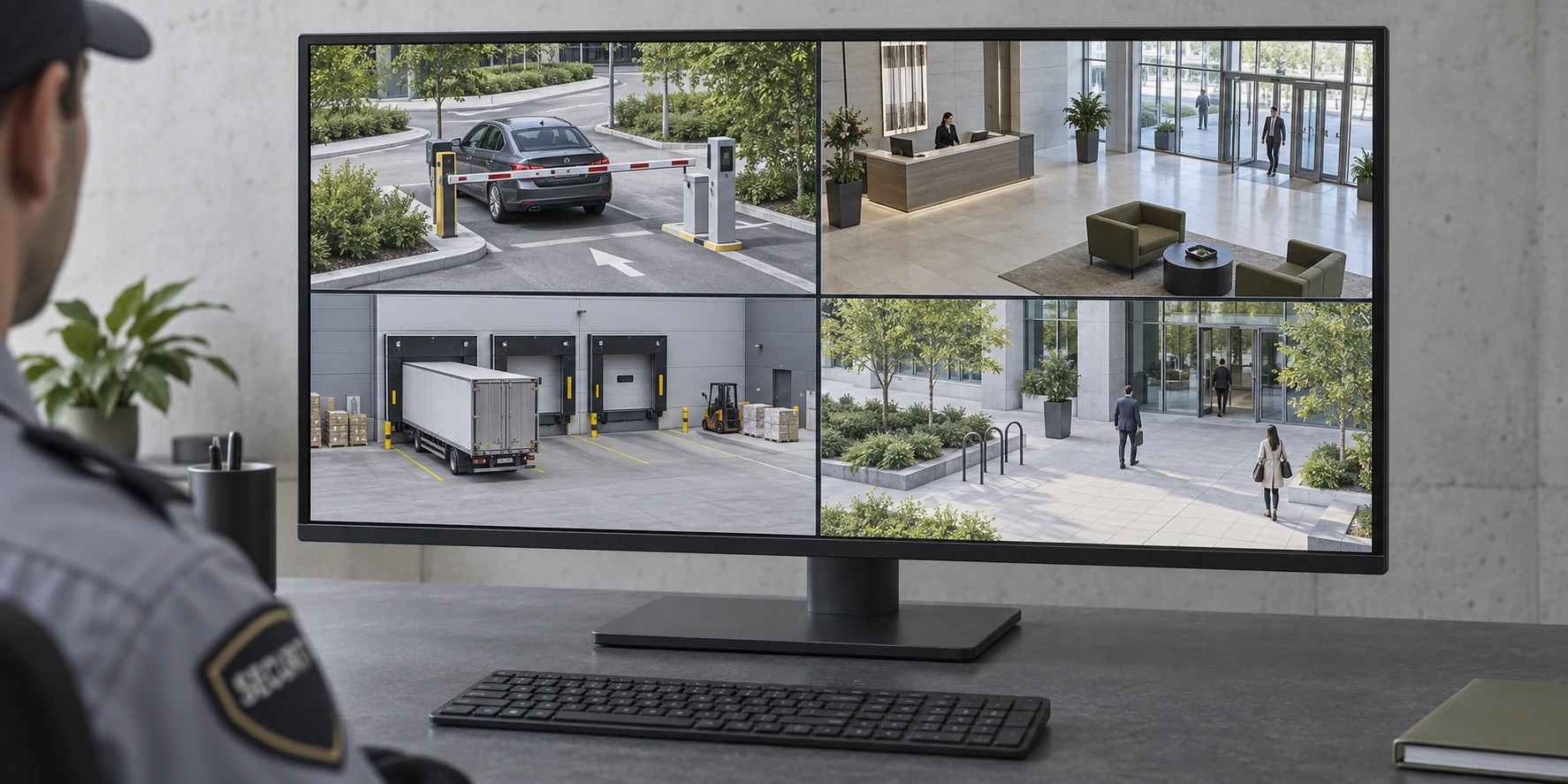

Widely Used In Security Monitoring, Video Conferencing, Video Teaching, Commercial Display & Advertising, And Command & Control Centers.
Engineered For Diverse Operational Scenarios

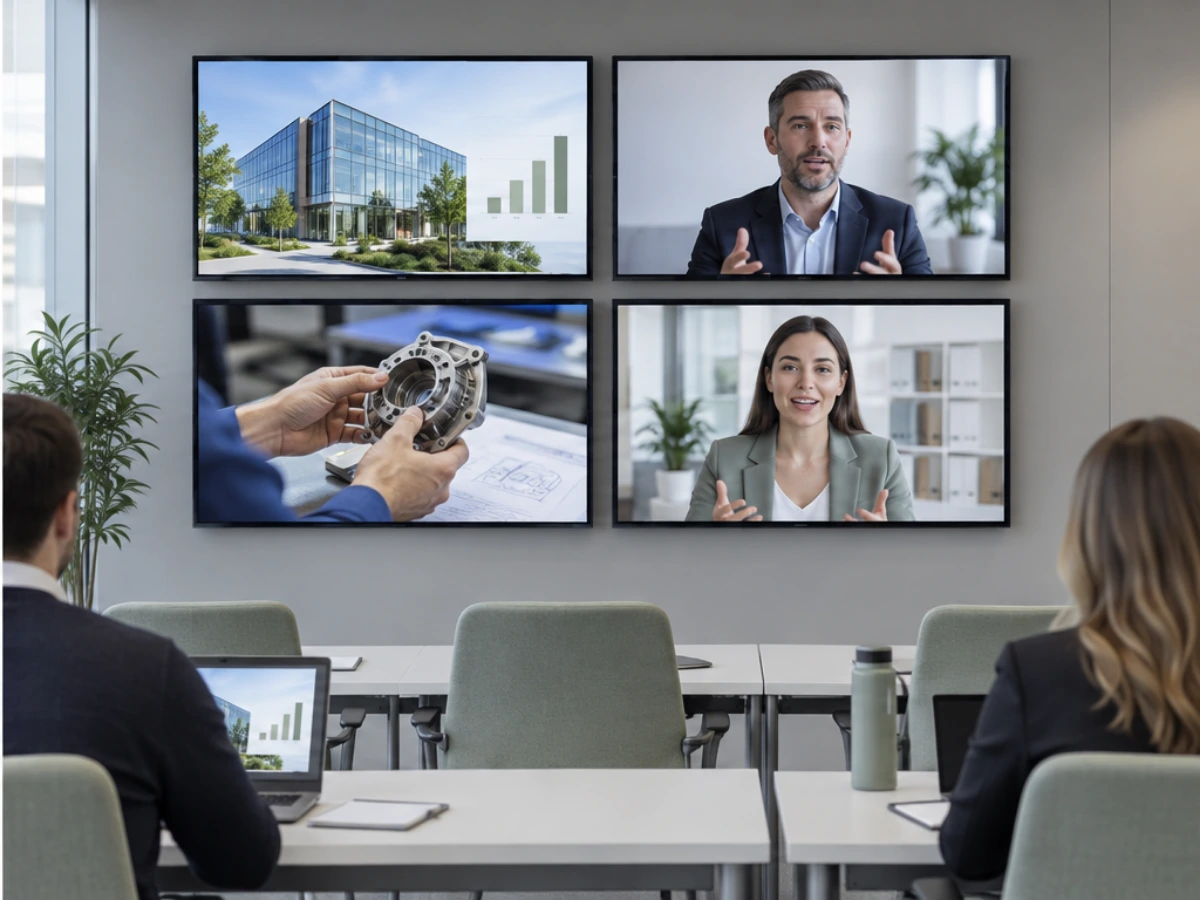

Millisecond-Level Seamless Switching, Any-To-Any Routing, And A Pure Hardware Architecture With Zero Latency Centralize Multiple Sources And Route Any Signal To Any Display With A Single Touch

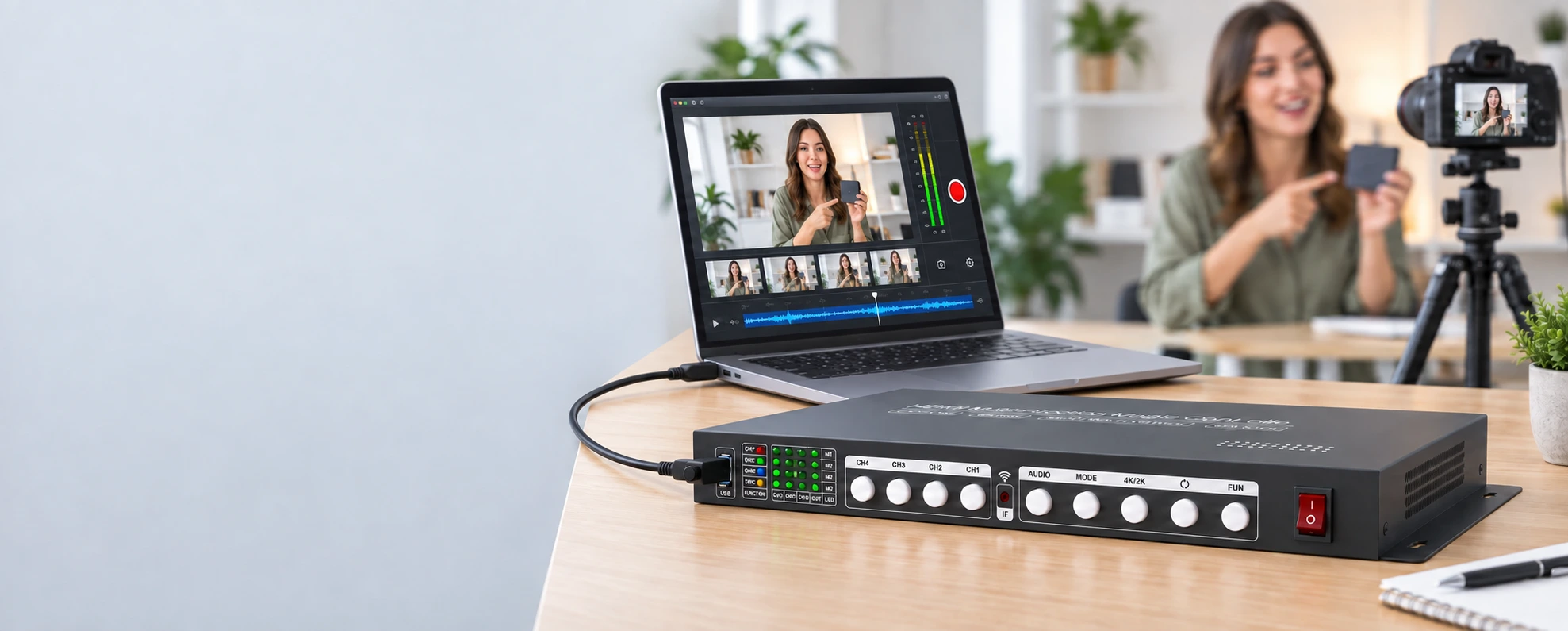

Plug&Play · Zero Setup
Connect Via USB To A PC Or Mobile Device -- Automatically Recognized, No Drivers, No Configuration.
Ultra-Low Latency, Lossless Signal Capture, Real-Time Output To PC Or Mobile. Perfect For Live Streaming, Recording, Broadcasting, Preview, And Archiving.
One Touch Away Stable · Intuitive · Ready To Use

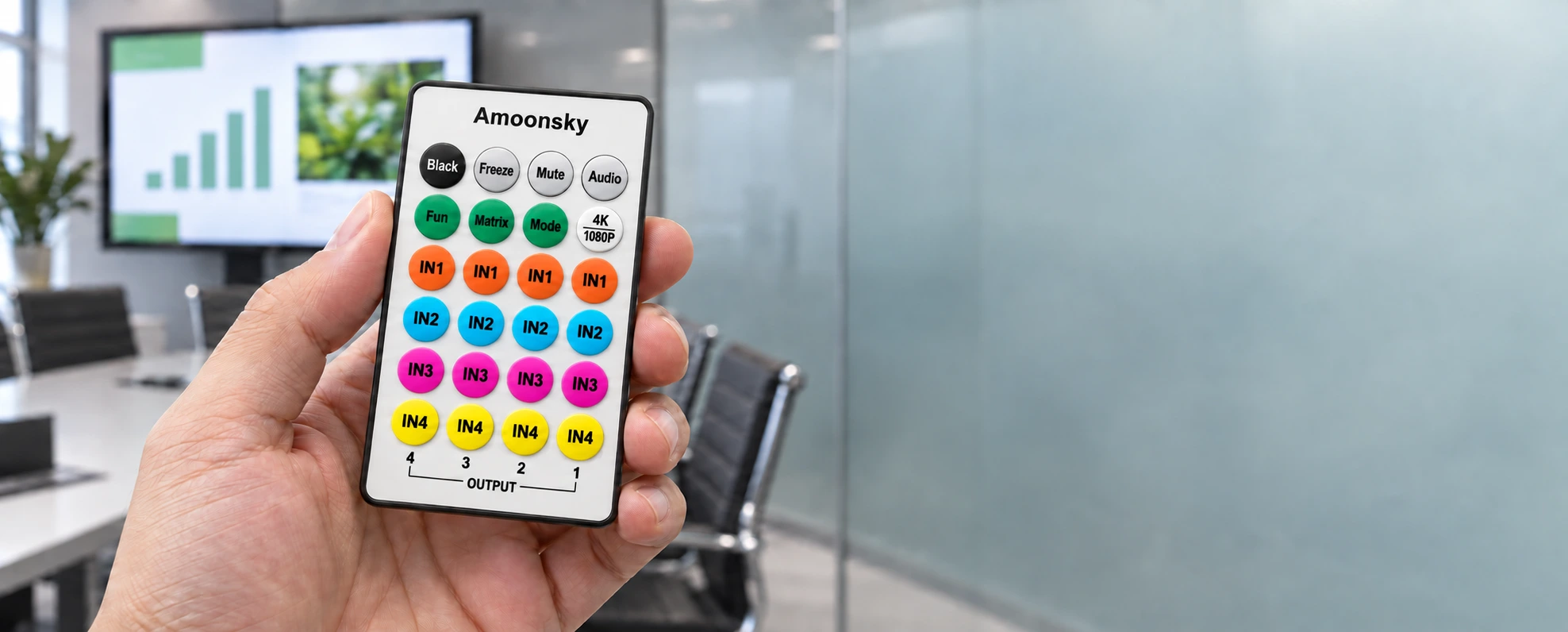

One Remote Total Control
IR Remote -- Ready When You Are, No Pairing Required Precise Channel Selection For Faster, More Efficient Operation
Applications
Distribute HDMI Sources Across Displays For Presentations, Monitoring, Training And Commercial Content.
| Port Specifications | |
| Video Port | 4×HDMI Inputs; 4×HDMI Outputs; Interface Type: HDMI‑A Socket; Signal Standard: HDMI1.4, Backward Compatible; Resolution: VESA Standard, ≤3840×2160p@30Hz; |
| Audio Out | Audio Output Interface, Dual Track; |
| General Specifications | |
| Power Supply | Internal Power Supply, 100–240V AC, 50–60Hz; |
| Temperature | Storage: −40°C To +80°C; Humidity: 10%–90%, Non‑Condensing; Working: 0°C To +60°C; Humidity: 10%–90%, Non‑Condensing; |
| Machine Size | 370mm (Length) × 185mm (Width) × 35mm (Height), Including Mounting Ears; |
| Packing Size | 420mm (Length) × 255mm (Width) × 85mm (Height); |
| Product Weight | Gross Weight: 2.0kg; |
| Package Weight | Volumetric Weight: 3.0kg; |
| Warranty | 1 Year; Note: All Rated Voltages Are On Average ±10%; |
| Packing List | |
| Standard | Remote Control × 1; Power Cable × 1; Certificate × 1; Warranty Card × 1; |
| Model | MTX_4x4 |
| Description | Standard Model |
